Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE ISO9001
Model Number: 50
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Cases
Delivery Time: 30 days
Supply Ability: 100 sets/ month
Type: |
Vertical |
Material: |
Plastic Granules |
Hopper Size: |
50 L |
Application Materical: |
PP PE Granules |
Size: |
830mm*790mm*960mm |
Power: |
1.5KW |
Type: |
Vertical |
Material: |
Plastic Granules |
Hopper Size: |
50 L |
Application Materical: |
PP PE Granules |
Size: |
830mm*790mm*960mm |
Power: |
1.5KW |
Powder Granule Pellet Plastic Heating Extruder Machne Parts with Cooling High Speed Plastic Mixer
Features of this mixing machine:
1. Designed with four-wheel vertical type, which is small size and convenient moving.
2. Material can be mixed evenly within short period of time with high efficiency and low energy consumption.
3. Drum cover and bottom are shaped by punching which ensures precise matching and durable operating.
4. The time may be chosen within 0-30 minutes for mixing.
5. Stainless steel blades are scientific and reasonable in structure, which may mix materials evenly during operation and minimize worked while saving time and power.
Main technical parameter:
| Model |
Mixing Capacity (kgs) |
Motor Power(kw) | Rotating Speed(r/min) | Barrel Dia(mm) |
Dimension (mm) |
Approx. Weight |
| GSM-25V | 25 | 0.75 | 80 | 580 | 720*670*900 | 90 |
| GSM-50V | 50 | 1.5 | 80 | 610 | 850*810*1070 | 120 |
| GSM-100V | 100 | 3 | 80 | 810 | 1020*980*1360 | 170 |
| GSM-150V | 150 | 4 | 68 | 840 | 1150*1050*1400 | 230 |
| GSM-200V | 200 | 5.5 | 68 | 890 | 1300*1180*1500 | 320 |
| GSM-300V | 300 | 7.5 | 58 | 890 | 1450*1350*1650 | 380 |
our Service:
Turn key project
Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
Arrangement for inspection, installation and testing work
After being informed machines ready for inspection, customer can send engineers to our factory.
After the machines are delivered to customer’s factory, we will send one or two technicians to the factory after preparation work is completed. Technicians will be responsible for guide on-site installation and testing machines.
Meanwhile technicians will give free training lessons to labors in customer’s factory.
After one year quality guarantee period, we will provide after-sell service for all the life.

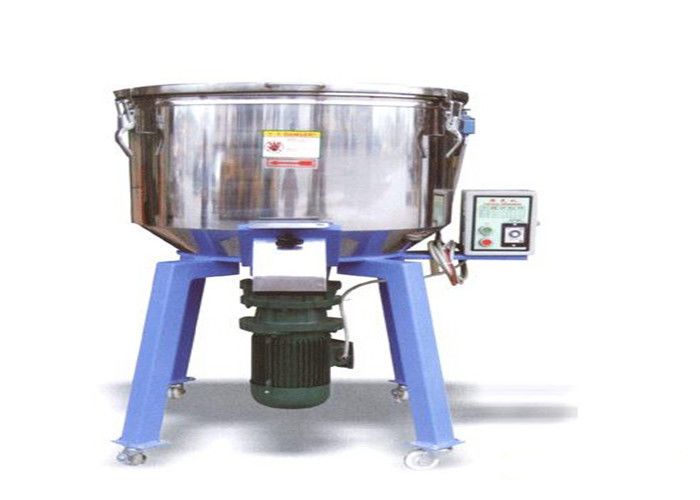

Mixer Picture:
