Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE ISO9001
Model Number: 520
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Cases
Delivery Time: 30 days
Supply Ability: 100 sets/ month
Layer: |
1-5 |
Material: |
Carbon Steel Q235 |
Weight: |
800kg |
Application Materical: |
PP, PA, PBT , ABS, AS, PC, POM, PET, Etc. |
Size: |
2140*808*848mm |
Power: |
2*(0.37 To 0.75) |
Layer: |
1-5 |
Material: |
Carbon Steel Q235 |
Weight: |
800kg |
Application Materical: |
PP, PA, PBT , ABS, AS, PC, POM, PET, Etc. |
Size: |
2140*808*848mm |
Power: |
2*(0.37 To 0.75) |
Large Capacity Linear Vibrating Sieve Machine Extruder Machine Parts with 2.5m
Features——linear Vibrating Screen
1. Easy to operate and maintain.
2. Low consumption with high yield and low cost.
3. Fully enclosed structure, automatic layout, more suitable for pipeline operations.
4. Good sealing without dust flying.
5. Can be used for single or multi layer.
6. Material auto discharge, be able to continuous operation.
7. Every part of the screen box used copper plate and section welded together.
This series machines using excellent vibradance motor as power source, so that the materials being thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.
Wide range of applications:It is widely used in chemical, food, metallurgy, mining, building materials, grain, abrasives, fertilizers, coal industry to screening and grading the granular and powder materials.
1. Depending on particle size of materials, thoroughly screening probability, productivity, and other conditions to determine the screen surface spacing or obliquity angle.
2. Ingenious sieve makes change sieve quickly and tension.
Technical parameters
| Type | VBZ510 | VBZ520 | VBZ816 | VBZ1020 | VBZ1025 | VBZ1224 |
| Dimension(mm) | 50x100 | 50x200 | 80x160 | 100x200 | 100x250 | 120x240 |
| Material granularity(mm) | 0.74-10 | |||||
| Inclined angle | 1°-7° | |||||
| Amplitude of vibration | 3-4.5 | |||||
| Max of layer | 1-6 | |||||
| Power(kw) | 2x(0.4-0.75) | 2x(0.4-1.1) | 2x(0.4-1.5) | |||
Machine Specification:

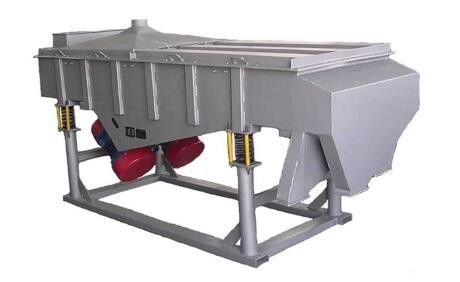

Machine Picture:
