|Place of Origin:||Made in Nanjing|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden base plate, damp proof plastic lining, fully-closed plate-box external|
|Delivery Time:||45 days after receive the payment of deposit|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||200 sets/year|
|Filament Diameter:||1.75mm 3.00 Mm||Power:||45 Kw|
|Tolerance:||+/- 0.03mm||Screw Design:||Single-screw|
|Service:||Oversea Service||Automatic Grade:||Semi-automatic|
There is big market for 3d printer filament along with the developing of 3d printing technology. We have shipped many production lines to USA, Brazil, Korea, Germany, India, Australia, etc.
The machine specially designed for making 3D printer filament, we can make some small change in configuration to fit different material. Such as PLA, ABS, PET, PETG, BVOH, HIPS, etc.
The Laser Diameter Guage is a high and new-technological product incorporating optics and electrics together. By adopting the laser scanning method, the instrument can carried out high-speed, high-precision, non-contact type measurement of tubular objects to be measured on the production line. Owing to the non-contact type measuring point, no interference will be introduced to the measured object. Thus this instrument is especially applicable to hot, soft, movable and vibrating measured objects.
|Screw diameter (mm)||16||35||45||65|
|Producing speed m/min||8-10||60-80||60-100||60-200|
|Tolerance mm||+/- 0.05||+/- 0.03||+/- 0.03||+/- 0.03|
------The machine’s design meets the international standard: CE Standard.
------Extruder noise levels must comply with Chinese law and industrial standards
------Control system to prevent machine from damaged at abnormal condition.
------Flash lamp and voice indicate that the machine is under abnormal condition
------The parts which might harm the operator are all designed with protection.

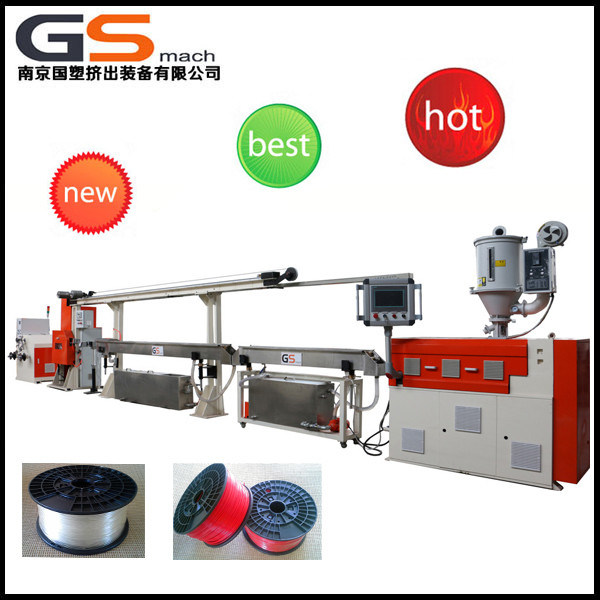

3D printer filament extruder consists of single screw extruder, water tank, tractor machine, laser, rolling up machine. its control system consists of intelligent temperature control table, imported electrical components and converter. Main feature of this line stable extrusion, good plasticizing effect, high degree of control precision, convenient operation etc.
|4-1||Single Screw Extruder||1|
|7||Storage Thread Stand||1|
|9||Rolling Up Machine||1|
------Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
------Delivery time: 45 days after receive the payment of deposit
------Payment: Deposit 40% by T/T in advance, delivery against payment of 60% balance after qualified acceptance
------Leave factory testing: before leaving factory, equipment should be tested by both parties. Test material offered by buyer
------Installation: we will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement; the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD50.For each technician/one day, estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after getting the machine
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
------The buyer shall provide the facilities and preparations:(Delivery machine to finish)
------foundation and adapter power supply water and compressed air pipe and related projects
------other interface equipment not listed above
------trial use of the raw material and product testing, inspection
