Place of Origin: | Made in Nanjing |
Brand Name: | GS-mach |
Certification: | CE ISO9001 |
Model Number: | GSD-35 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | Wooden base plate, damp proof plastic lining, fully-closed plate-box external |
Delivery Time: | 45 days after receive the payment of deposit |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets/year |
Output: | 8-15 Kg/h | Screw Design: | Single-screw |
---|---|---|---|
Tolerance: | +/- 0.03mm | Area: | 11m*1m*1.9m(L*W*H) |
Filament Diameter: | 1.75mm 3.00 Mm | Total Power: | 30KW |

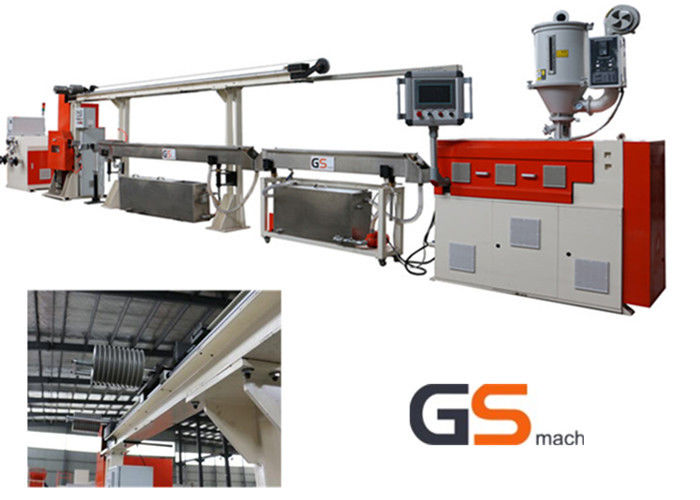

Single Screw 3D Printer Filament Extrusion Line 8 - 15 kg h Plastic Filament
General Introduction
Plastic filament extrusion line consists of single screw extruder, water tank, tractor machine, rolling up machine. Its control system consists of intelligent temperature control table, imported electrical components and converter. Main feature of this line: stable extrusion, good plasticizing effect, high degree of control precision, convenient operation etc.
Common Requirements
------The machine’s design meets the international standard:CE Standard.
------Extruder noise levels must comply with Chines law and industrial standards
E-Stop Switch
------Control system to prevent machine from damaged at abnormal condition.
------Flash lamp and voice indicate that the machine is under abnormal condition
------The parts which might harm the operator are all designed with protection.
The following technical documents included in the content of purchasing object
------Installation layout diagram of machines
------Circuit diagram of machines
------Operation manual of machines
------Certificate of machine quality
------Certificate of machine warranty by supplier
------Spare parts(refer to spare parts list)
Machine Composition
Item | Equipment line | QTY/SET |
1. | Mixer Machine | 1 |
2. | Vacuum Loader | 1 |
3. | Hopper dryer | 1 |
4-1. | Single screw extruder | 1 |
4-2. | Die head | 1 |
5. | Water tank | 1 |
6. | tractor machine | 1 |
7. | Storage thread stand | 1 |
8. | Roundness Laser | 1 |
9. | Rolling up machine | 1 |
10. | Vacuum Packing machine | 1 |
About US.
We are the earliest supplier in producing 3D printer filament machine and have full experience in this field.So I believe we can provide you the best service and best quality machine from China. we can provide you the best service and best quality machine from China.
------Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
------Delivery time: 45 days after receive the payment of deposit
------Payment: Deposit 40% by T/T in advance, delivery against payment of 60% balance after qualified acceptance
------Leave factory testing: before leaving factory, equipment should be tested by both parties. Test material offered by buyer
