Nanjing GS-mach Extrusion Equipment Co.,Ltd
24H Hotline:+86-18851021602 +86-15195907172
Place of Origin: | China |
Brand Name: | GS-mach |
Certification: | CE ISO9001 |
Model Number: | GS65 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Wooden cases and pallet |
Delivery Time: | 30~45 days |
Payment Terms: | L/C, T/T, D/A, D/P |
Supply Ability: | 100 sets/month |
Final Filament: | Uniform Wall Thickness | Process Diameter: | 1.75mm,2.85mm,3.0mm |
---|---|---|---|
Capacity: | 30~60kg/h | Tolerance: | +/-0.03mm, |
Control System: | PLC Control System | Type: | Full Automatically Running System |

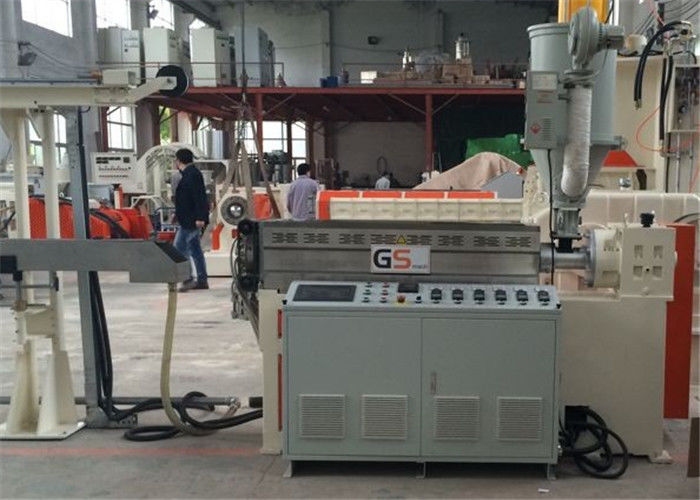

Plastic filament Extuding machine of 30kg/h~50kg/h for 3D printer
Application:
3D printing materials is a new type of high-tech printing materials, and widely used in civil and military market, which is emerging on current international high-tech printing materials.
Plastic 3d printing materials mainly include material ABS, PLA. Its application can be widely used in scientific research, teaching, market application, civil, military and other fields.
3D printing will be into the life of people in the future, just like we use computer. Real dispense open mold, proofing, production, distribution agents, department store, a lot of link such as consumers, than platform shoes, cups, toys and so on.
All things in our life can be achieved by 3D printing production and use, and completely change the traditional mode of production and ways of distribution. It will be a high-tech technology revolution.
Produce process
I . Before produce extruding filament ,we will dry ABS and PLA for a enough time (3-5 hours).
II. Mix with colors masterbatch or colors powder, all which .
III.Adjust temperature and dragging rate , make filament diameter range at 1.6-1.8mm/2.8-3.0mm, roundness +/-0.05mm, each spool net weight 1kg+/-0.02kg
About waste & recycle
Much time you will find some black filament is too brittle, that added and mixed with some recycle and scrap after produced.
Productiong quality control
I. we have diameter laser device kits to control extruding rate on line, when diameter smaller or higher than accept range, the laser device kits will adjust the extruding rate higher or smaller to make diameter range at acceptable.
II.keep each record filament samples sent to customers, build a tracking able document.
III.when the filament put on shelf longer than half a year, please dry the filament again.
Plastic filament Extuding machine of 30kg/h~50kg/h for 3D printer
Machine list:
NO. | Item name | Quantity |
1 |
Hopper dryer with loader
|
1 |
2 |
ABS/PLA single screw extruder
|
1 |
3 |
High precision mold
|
1 |
4 |
2M warm water tank and 4M Water cooling tank
|
1 |
5 |
Diameter measuring device
|
1 |
6 |
Haul-off machine
|
1 |
7 |
Double station coiler
|
1 |
8 | Voltage:380V 50HZ or customized |
Tetails
------Packing type: Wooden base plate,damp proof plastic lining,fully-closed plate-box external
------Delivery time: 45 days after receive the payment of deposit
------Payment: Deposit 40% by T/T in advance,delivery against payment of 60% balance after qualified acceptance
------Leave factory testing: before leaving factory,equipment should be tested by both parties.Test material offered by buyer
