ABS PLA PETG PA PEEK 3D Printer Filament Extruder +/-0.03mm Tolerance High Perfomance

Product Details

Place of Origin: China

Brand Name: GS-mach

Certification: CE ISO9001

Model Number: GS45

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Wooden cases and pallet

Delivery Time: 30~45 days

Payment Terms: L/C, T/T, D/A, D/P

Supply Ability: 100 sets/month

Get Best Price
Product Details
Highlight:

3d printer filament making machine

,

plastic filament extruder machine

Process Material:
ABS PLA PETG PA PEEK Filament
Tolerance:
+/-0.03mm,
Control System:
PLC Control System
Type:
Full Automatically Running System
Heating Temperature:
Over 300 Degree
Control:
Screen Touch Control System
Process Material:
ABS PLA PETG PA PEEK Filament
Tolerance:
+/-0.03mm,
Control System:
PLC Control System
Type:
Full Automatically Running System
Heating Temperature:
Over 300 Degree
Control:
Screen Touch Control System
Product Description

ABS PLA PETG PA PEEK filament Extrusion machine of 15kg/h~30kg/h for 3D printer



------Specifications of Machine

------Application: 3D printer filaments extrusion

------Raw material: ABS PLA PA PETG PEEK granules

------Color: custom(Usually orange &computer white)

------Specification:

DN1.75mm,production speed is about 60-85m/min,the outside diameter tolerance+/-0.03mm

DN2.85mm,production speed is about 40-60m/min,the outside diameter tolerance+/-0.03mm



ABS PLA PETG PA PEEK filament Extrusion machine of 15kg/h~30kg/h for 3D printer uses the PLC and PID control system, precise cooling water temperature control system, laser measuring system and efficient loading winding system etc.. The program will automatically control the diameter according to the data from the laser, which will make sure that the tolerance is less than 0.03mm.



Composition of ABS PLA PETG PA PEEK filament Extrusion machine of 15kg/h~30kg/h for 3D printer:



Item Equipment line QTY/SET
1 Mixer Machine 1
2. Vacuum Loader 1
3. Hopper dryer 1
4-1. Single screw extruder 1
4-2 Die head 1
5 Water tank(hot water and cold water tank) 1
6 tractor machine 1
7 Storage thread stand 1
8 Measuring diameter instrument 1
9 Rolling up machine 1
10 Vacuum Packing machine 1
11 Wooden case package Charges 1



------Outwards appearance requirement

Internal and external surface of rod/wire should be smooth and single color, should be uniform wall thickness,no manufacturing defect and air bubble, shrinkage, crack, non-uniformity etc.



Features of ABS PLA PETG PA PEEK filament Extrusion machine of 15kg/h~30kg/h for 3D printer:

1,Material:PLA/ABS/HIPS

2,Diameter :1.75mm-3.0mm

3,Shape:round

4,Color:bule,red,orange,yellow,green etc any colors.

5,Usage: be applied to a variety of 3D printer, Makerbot, Mendel, Prusa, Huxley, BFB series, etc..

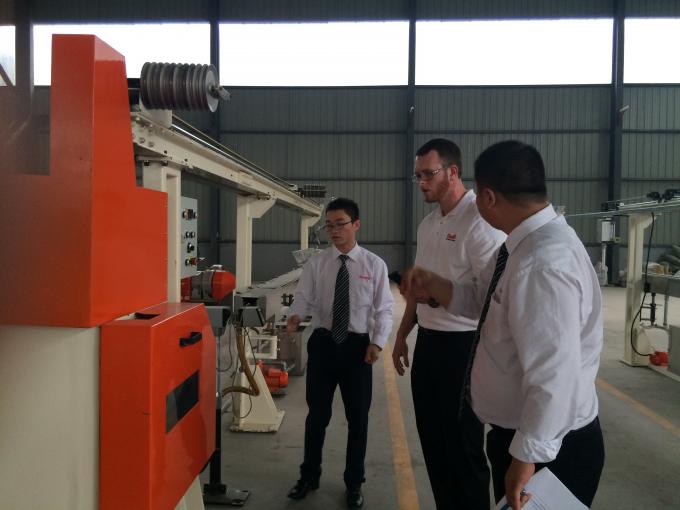

The picture of ABS PLA PETG PA PEEK filament Extrusion machine of 15kg/h~30kg/h for 3D printer:



ABS PLA PETG PA PEEK 3D Printer Filament Extruder +/-0.03mm Tolerance High Perfomance
