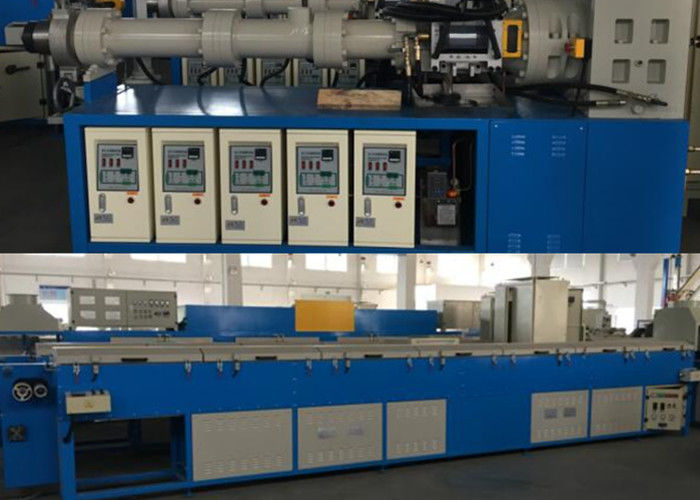

Rubber door and window sealing production line Rubber Sealing Profiles
Machine Composition
| NO. |
DESCRIPTION OF GOODS |
Q'TY (Set) |
| 1. |
GSR-90 Cold Feeder Vacuum Extruder |
1 |
| 2. |
3 m Vacuum high-temperature forming oven |
1 |
| 3. |
9 m,12KW microwave vulcanization oven |
2 |
| 4. |
8m Hot air vulcanization oven |
1 |
| 5. |
6m Cooling Tank with Chiller |
1 |
| 6. |
Tractor machine |
1 |
1)Type: GSR-90-20D
A.Extruder center height --------1050mm±20mm
B.Pressure Control -------- With pressure sensors, pressure to protect the value of adjustable 0-35MPA
C.Extruder can rotate 90 degrees and a positioning
2) Screw
A.Screw material:38GrMoAlA
B.Nitriding depth:0.4-0.6mm
C.the main spiral of the Screw use two-spiral screw thread
D.the design of the screw can be a good slot to eliminate snails downstream direction with the
cross-flow (dead area), it has good self-cleaning, the extrusion products are uniform and stable, the
tight is good.
E.Die Head of extruder use quick clip ring locking device
F.Designed pressure of head :35Mpa working pressure of the head:25Mpa
Pressure Control: with a pressure sensor, pressure to protect the value of adjustable 0-35MPA
G.Length/diameter(L/D):12:1
H.Screw diameter:90mm
I. Screw speed:0-55r/min
3. )Temperature control system:
A. Heating section/power:3segment 3kw×3
B. Cooling Section:3 segment
C. Barrel and screw heating method:Mold Temperature Control
| 1 |
|
Type |
Pin type |
| 2 |
|
power |
3phase 380V,50HZ |
| 3 |
|
Hot media |
water |
| |
|
control |
Self-optimizing microprocessor |
| 4 |
|
Temperature Accuracy |
PID±1℃ |
| 5 |
|
Highest temperature |
95℃ |
| 6 |
|
Lowest temperature |
Water at room temperature |
| 7 |
|
Heating power |
4kw |
| 8 |
Pump |
power |
0.37KW |
| Maximum high |
35M |
| Maximum flow |
35L/MIN |
| 9 |
Piping |
Cooling to the nozzle |
15A(1/2B) |
| |
|
Cooling outlet |
15A(1/2B) |
| Hot media outlet |
1/2 |
| Hot Media Entrance |
1/2 |
| 10 |
Thermostat |
type |
Temperature Accuracy PID±1℃ |
| |
|
Regulating action |
Heating and cooling dual |
| Body temperature |
Thermocouple No. indexing |
| Show status |
Set value and actual values were shown, the current display |
| Output Select |
Relay Output |
| 11 |
Alarms |
Temperature anomalies |
Circulating water temperature exceeds the upper limit of alarm and cut off the circuit |
| |
|
Reverse-phase power supply |
Power phase detection to prevent the pump reversal |
| Short of oil to protect |
Detection of oil level switch state |
| Pump overload |
Heat pump overload relay protection |
| short |
Air Switch |
| 12 |
Additional features |
|
Return water temperature function display |
| 13 |
|
High-pressure anomaly |
Pressure switch abnormal high pressure protection system action |
