Place of Origin: | Made in Nanjing |
Brand Name: | GS-mach |
Certification: | CE SGS |
Model Number: | GS120 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | wooden cases or pallets |
Delivery Time: | 30 days |
Supply Ability: | 100 set/ month |
Process Material: | EPE XPS Foam | Application: | Recycling Granules Making Machine |
---|---|---|---|
Capacity: | 400~500kg/h | Type: | Single Screw Extruder |
L/D: | 32:1 | Model: | Washing Line And Granules Machine |
Pet Recycling Machinery Pet Bottle Crusher of plastic recycling extruder with Grind Plastic Machines
GS 30HP/22KW Crusher for Plastic Industry
1. Suitable for recycle of plastic casing, thin tube plastics, injection and mould sector, bottle plastics and shell plastics;
2. GS-PD series are easy to operate and simple to replace cutters. Spacious flat blade is suitable to granulate bulky and thin plastics, increases efficiency; installed with electrical safety devices; double wall hopper with sound-proof material. Motor is equipped with overload protector, and power protection devices. Safety and environmental protection, low electricity consumption and durable. Stainless steel hopper for all models is available.
Product specification
Model | GS-PD800 |
Crushing chamber(mm) | 815*470 |
Crushing ability(kg/h) | 450-600 |
Stationary cutter | 4 |
Rotary cutter | 9 |
Power(kw) | 22 |
Dimensions (mm) | 1730*1490*2300 |
Net weight(kg) | 2000 |
Model | GS-PD250 | GS-PD380 | GS-PD500 | GS-PD630 | GS-PD700 | XC-PD800 |
Crushing chamber(mm) | 250*210 | 380*240 | 504*320 | 630*340 | 710*380 | 815*470 |
Crushing ability(kg/h) | 80-150 | 200-300 | 300-400 | 450-600 | 450-600 | 450-600 |
Stationary cutter | 2 | 2 | 2 | 2 | 2 | 4 |
Rotary cutter | 3 | 6 | 6 | 6 | 6 | 9 |
Power(kw/hp) | 3/5 | 7.5/10 | 15/20 | 22/30 | 22/30 | 22/30 |
Dimensions (mm) | 930*650*1100 | 1050*800*1300 | 1390*1070*1840 | 1650*1250*1800 | 1750*1250*1850 | 1730*1490*2300 |
Net weight(kg) | 350 | 430 | 900 | 1050 | 1150 |
2000 |

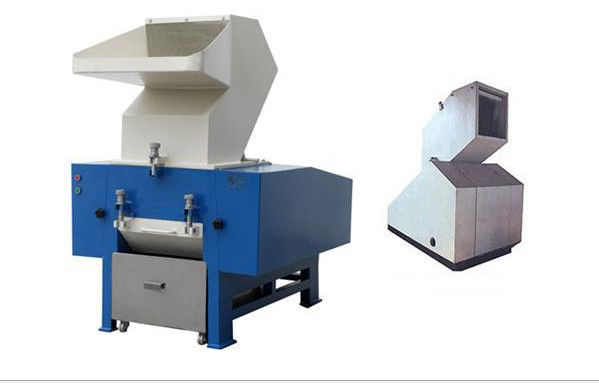

Crusher Picture:
