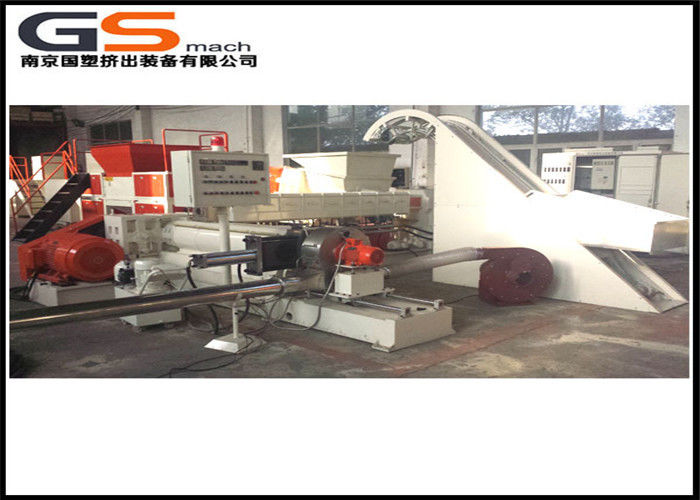

Hot Air Cutting System Rubber Kneader Machine For Internal / External Screen Cables

Hot Air Cutting System Rubber Kneader Machine For Internal / External Screen Cables

Hot Air Cutting System Rubber Kneader Machine For Internal / External Screen Cables

Product Details:

Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: SGS CE
Model Number: 35L+100 single screw extruder

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden cases and pallets
Delivery Time: 30 days
Supply Ability: 1
Contact Now
Detailed Product Description
Process Material: Internal And External Screen Of Cables Cutting System: Hot Air Cutting System
Voltage: 220V/380V/440V/ Type: 35+100 Single Screw Extruder
Weight: 16T Application: Granules

35L Mixer+ 100 single screw extruder Rubber kneader Machine with internal and external screen of cables



Machine Composition

Model Machine Quantity
1. 55L Kneader 1 Set
2. Conveyor 1 Set
3. Twin Screw force feeder 1 Set
4. 120mm Single Screw Extruder with electrical control system 1 Set
5. Air Cooling hot cutting system 1 Set



GSD-100 Single Screw Extruder Introduction:

------Gear box

------Speed reducing system combine with torque distributing system together, high torque

------speed rate:16:1

------Gear: high speed heavy load hard surface, gear axle material is 20CrNi2MOA, HRC58-62;

------lubricant oil cooling system: oil pump motor 0.75kw;



------Main motor

------Power:55kw

------Main motor rotation speed:1480rpm

------Adjust Speed Method: adopting ”ABB” AC frequency conversion speed



------Screw

------Diameter:φ100mm

------ L/D:20:1

------Materiel:38CrMoALA , nitrogen treatment, the nitrogen HV950-1050, deepness 0.5-0.8mm,

brittleness≦Level.



-------Barrel

-------Materiel:38CrMoALA, nitrogen treatment, the nitrogen HV950-1050, deepness 0.5-0.8mm,

brittleness≦Level.

-------Barrel is water cooling.

-------Barrel open the slotting ,coil the copper ,applying Cold water cooling for Screw barrel

-------Barrel has the protective cover which is S/S.



-------Soft water cooling system: Cooling medium for soft water

-------Water pump:0.55KW

------Soft water tank separate with main frame. Convenience for cleaning and repairing

------Water electromagnetic valve, pin valve., Taiwan brand

------Main circulation water pipe diameter :φ60mm,

-----Connected shot water pipe adopt copper pipe.

-----Circulation water tank material: Stainless steel

------Heating ex-changer type:LS-428;



------Heating section: adopt the high quality casting aluminum heater



------Hydraulic pressure automatic screen ex-changer: fixed between barrel and head, one set hydraulic station, one set hydraulic cylinder.

(1)screen ex-changer:

A. Position: fixed between barrel and head

B. Plate filer automatic screen ex-changer, Flow section for circular

C. Casting copper heater 2 slices.

D. The double location: Including two pieces of porous plate

(2)Hydraulic pressure station

A. Oil circuit system pressure:15Mpa<25Mpa;

B. Hydraulic pump output volume:4L/min

C. Motor rated power: 2.2 kw, Rated Speed:1420rpm

D. Hydraulic Oil:YA-N46

F. Accumulator nitrogen filled pressure:7Mpa

------Hot Cutting Die:

------head pressure sensor device;

------Head melting temperature sensing display device

------Hot cutting: copper heater and a set of;



-------Interlock System :

------OMRON intelligent instrument, PID parameter self-regulation, heater broken circuit indication

------Interlock for single screw extruder and gear box

------Interlock for single screw extruder and feeder: extruder stops delayed when breakdown happen on the feeder; feeder stops immediately when extruder break down.

------Single screw extruder head is installed with indication of melt pressure and temperature. Melt pressure is interlocked with main frame, over pressure protect.
