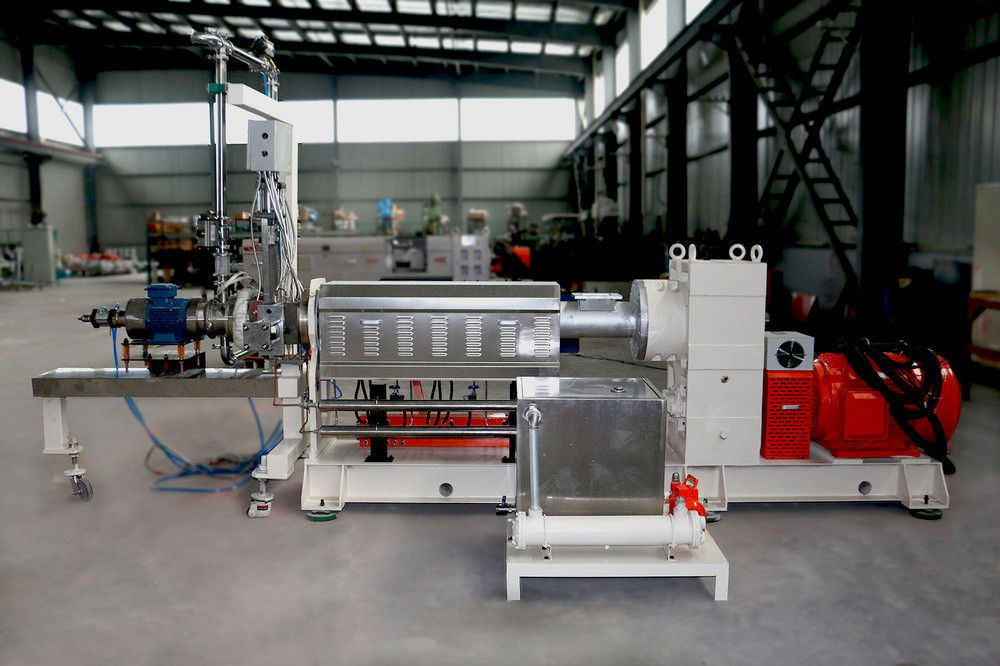

High efficiency Single Screw Extruder Pelleizing Line with under-water pelletizing system is mainly used for extrusion of soft, hard polyvinyl chloride polyethlene and other thermoplastics with it, and the corresponding
auxiliary(including molding machine),processing avariety of plastic products,such as pipe,plate,wire,shoe sole,etc,also can be used.
This lineis widely used:low smoke free halogen cable material,internal and external screen of cables, PVC cable material,EVA foam series,PP/PE filling masterbatch,black masterbatch,stone paper masterbatch,non-waven masterbatch,woven bag Masterbatch,etc.
Specification of High efficiency Single Screw Extruder Pelleizing Line with under-water pelletizing system
Pelletizing craft:
Kneader---automatic conveyor----Conical twin screw force feeder extruder---single screw extruder---Hydraulic Screen Changer---Under-water Pelletizing System
main technical parameter of Single screw extruder:
|
Model
Parameter
|
Kneader |
Kneader Motor Power |
L/D |
Screw Dia. |
Single Screw Motor Power |
| GSD-100 |
35L |
55kw |
12-22:1 |
100mm |
37-55kw |
| GSD-120 |
55L-75L |
75-110kw |
12-22:1 |
120mm |
55-75kw |
| GSD-150 |
110L |
160kw |
12-22:1 |
150mm |
75-110kw |
| GSD-180 |
150L |
220kw |
12-22:1 |
180mm |
90-132kw |
Our service:
Before-sale
Introduce products and applications detain
Recommend suitable solution
Provide with reference in formation
Offer lab for test
During manufacturing
Provide with layout and engineering conditions
Inform the project processing status
Offer other documents
After-sale
Provide with installation ,commissioning and training
Register and recordcustomer information
Offer spare parts
Provide with necessary technical support for new application
Visit customer regularly and correct information
