Single & Twin Screw Filler Masterbatch Machine With Plastic Extruder Line

Name: Single & Twin Screw Filler Masterbatch Machine With Plastic Extruder Line
Brand: Nanjing GS-mach Extrusion Equipment Co.,Ltd
SKU: GSJ-65/150
Availability: InStock

Product Details

Place of Origin: Made in Nanjing

Brand Name: GS-mach

Certification: CE SGS

Model Number: GSJ-65/150

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: wooden cases or pallets

Delivery Time: 45 days after payment of deposit

Supply Ability: 100 set/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                recycled plastic extrusion, film extrusion machine


Process Material:	PP PE + Caco3	Application:	Plastic Granulation
Motor Power:	55-75	Type:	65/150 Twin & Single Screw Extruder
OEM Service:	Offered	Model:	Filler Masterbatch Production Line

Process Material:	PP PE + Caco3
Application:	Plastic Granulation
Motor Power:	55-75
Type:	65/150 Twin & Single Screw Extruder
OEM Service:	Offered
Model:	Filler Masterbatch Production Line

Product Description

Single & Twin Screw Filler Masterbatch Machine With Plastic Extruder Line

GSmach Two-stage Extrusion

Usually the first compounding extruder runs at a high speed for good mixing and high output capacity. The second extruder must be a large diameter single screw one that can run at lower screw speed. The lower screw can avoid over - heating by internal cooling system and strong heat exchange ability. The functional separation allows operator to more flexibly control the expectable material mixing process and temperature.

Applicaton:

The two-stage Filler Masterbatch Machine applicable to products, PP,PE filler masterbatch, low smoke free halogen cable, PVC cable material, chemical crosslinking cable material, wood plastic, a wide range of uses.

Two-stage Filler Masterbatch Machine Model:

Model	Main frame	Motor Power(kw)	Rotate Speed(rpm)
GSJ-50/100	GS-50 twin screw extruder	37-55	500-600
GSJ-50/100	GSD-100 single screw extruder	22-45	60-90
GSJ-65/150	GS-65 twin screw extruder	55-75	500-600
GSJ-65/150	GSD-150 single screw extruder	45-55	60-90
GSJ-75/180	GS-75 twin screw extruder	75-132	500-600
GSJ-75/180	GSD-180 single screw extruder	75-90	60-90
GSJ-95/200	GS-95 twin screw extruder	250-315	400-500
GSJ-95/200	GSD-200 single screw extruder	90-132	60-90

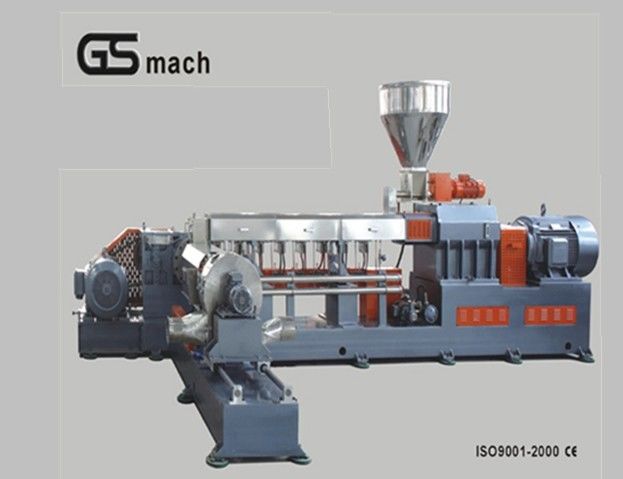

Machine Picture:

Single & Twin Screw Filler Masterbatch Machine With Plastic Extruder Line
