Electrical Control PP ABS Double Screw Extruder Water Strand Pelletizing Line

Product Details:

Place of Origin:	Made in China
Brand Name:	GS-mach
Certification:	CE ISO9001
Model Number:	GS-20/35/50/65/75/95

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	Wooden base plate, damp proof plastic lining, fully-closed plate-box external
Delivery Time:	45 days after payment of deposit
Payment Terms:	Western Union, MoneyGram, L/C, T/T
Supply Ability:	100 sets/ month

Contact Now

Detailed Product Description

Process Material:	PP, ABS, EVA,PET Pigment Color Masterbatch,engineer Plastic	Capacity:	5-1000 Kg/h
Brand Name:	GS-mach	Motor Power:	75kw
Voltage:	220/380/480 V	Supplier:	Factory Direct

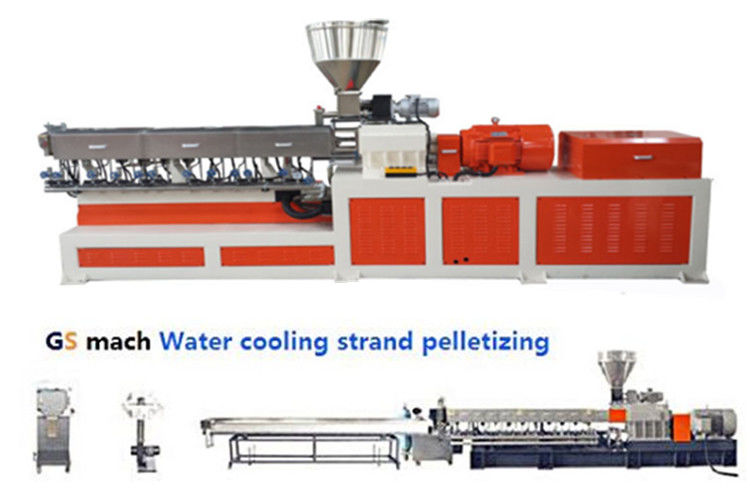

PP ABS Double Screw Extruder Making Machine Water Strand Pelletizing Line

Models

Model	series	Diameter	L/D	R/min	Power	Output	T/A	N.m
GS-20	A	21.7	32-60	400	3	2-10	4.8	30
	B			600	4	5-15	4.8	30
GS-35	A	35.6	32-60	400	11	10-40	4.6	123
	B			600	15	15-55	4.2	115
	C			600	22	40-95	6.1	165
	D			600	30	70-120	8.3	225
GS-50	A	50.5	32-60	500	45	120-200	5.1	405
	B			600	55	155-255	5.2	415
	C			600	75	200-355	7.1	565
	D			600	90	255-400	8.5	680
GS-65	A	62.4	32-60	500	75	200-355	4.8	680
	B			600	90	255-400	4.8	680
	C			600	110	300-550	5.9	830
	D			600	160	500-850	8.5	1200
GS-75	A	71	32-60	500	110	300-550	4.6	995
	B			600	132	450-750	4.6	1200
	C			600	160	500-850	5.5	1890
	D			600	250	750-1250	8.7	2260
GS-95	A	93	32-60	500	250	750-1250	4.7	2360
	B			600	315	950-1600	5	2380
	C			600	450	1350-2250	7.1	3400
	D			600	550	1650-2750	8.7	4510
GS-135	A	133	32-60	400	550	1650-2750	4.4	6200
	B			500	750	2250-3750	4.8	6800
	C			500	900	3000-5000	5.7	8100
	D			500	1200	4500-7500	5.7	10800

General Information

This PP ABS Double Screw Extruder Making Machine Water Strand Pelletizing Line adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality. This line has good mixing, dispersion and extrusion performance, which will help make top quality pellets. It is used for masterbatch, raw material PE, PP, PS, ABS, EVA, PET + Pigment and additives. Parallel and triaxial structure and dual rack drive system. Gear and shaft made of fine quality material SKF bearing oilimmersion lubricating system, low oil position and overpressure alarming system. High rotating speed ,high torque ,high yield.

Machine Composition

Items	Equipment Line
1	Spiral Load Feeder
2	Twin Screw Extruder
3	Electrical Control System
4	Water strand pelletizing system

Shipping and Packing

Filling Modification equipment double screw extruder parallel twin screw machine will be packed by wooden base plate, damp proof plastic lining, fully-closed plate-box external.

Deposit 40% by T/T in advance, delivery against payment of 60% balance after qualified acceptance.

Before leaving factory, equipment should be tested by both parties. Test material offered by buyer.

We will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement; the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD50.For each technician/one day, estimate 5-7 working days
