Nanjing GS-mach Extrusion Equipment Co.,Ltd
24H Hotline:+86-18851021602 +86-15195907172
Place of Origin: | Made in China |
Brand Name: | GS-mach |
Certification: | CE ISO9001 |
Model Number: | GS-75B |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | Wooden base plate, damp proof plastic lining, fully-closed plate-box external |
Delivery Time: | 45 days after payment of deposit |
Payment Terms: | Western Union, MoneyGram, L/C, T/T |
Supply Ability: | 100 sets/ month |
Oversea Service: | Installation,staff Trainning | Warranty: | 12 Months |
---|---|---|---|
Supplier: | Factory Direct | Raw Material: | PVC |
Cutting System: | Water Strand Cutting System | Delivery Time: | 45 Days After Payment Of Deposit |

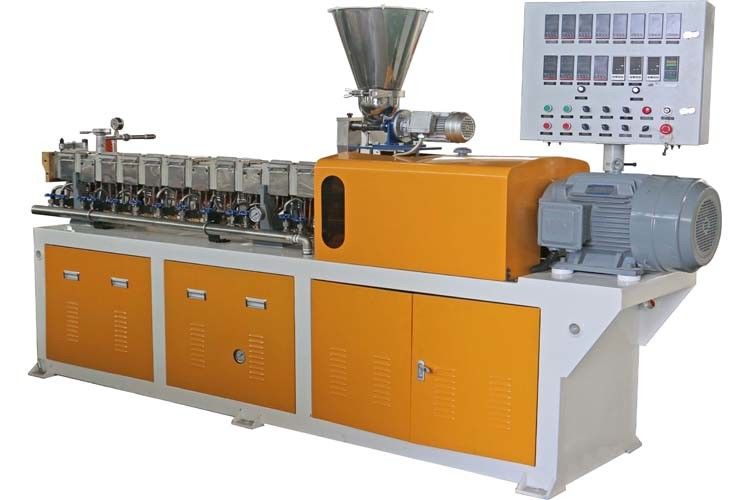

Introductions of PLA granulator double screw extruder filling modification extruder
--- Excellent mixing performence.
--- Good self-cleaning performance.
--- Flexible modular configuration characteristics.
--- Designed by using the 'toy bricks" principle.
--- Can make the plastic extrusion machine changed according to the materials properities and process technology easily.
--- Possible for one machine reach the extensive performance and special purpose in many places.
PLA granulator double screw extruder filling modification extruder usually including six main components:
Twin screw metering feeder——Twin screw extruder——Water strand die head——Water tankr——Dryer——Pelletizer
Twin screw extruder is used to process the rubber and plastic material into the filling, mixing, modified of polypropylene material and high absorbent resin material. It is suitable for several kinds of plastic material.
This series of extrusion system could be adjusted the different structure of screw and barrel according to different material. The electrical heating and water cooling system to control the temperature of the barrel automatically, and equipped with the feeding system, vacuum discharging system and non-stop screen exchange system.
The twin screw adopts the frequency inventor and AC motor to control the machine. Reduce the speed and the transmission of twin screw are in the one-year box, their size match very well.
The pin of safety coupling to protect the screw and transmission box in case of the damage of overload.
PLA granulator double screw extruder filling modification extruder has many different kinds of machine,all of which just according to our customers' needs.
Model/Parameter | GS-20 | GS-35 | GS-50 | GS-65 | GS-75 | GS-95 |
Capacity | 10-20 | 30-50 | 100-200 | 200-300 | 300-400 | 400-800 |
Main motor | 4 | 45-22 | 37-65 | 45-75 | 75-160 | 132-250 |
Screw diameter | 21 | 35.6 | 50.5 | 62.4 | 71 | 93 |
L/D | 28-40 | 28-48 | 28-64 | 28-64 | 28-64 | 28-64 |
Rotate speed(rpm) | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 |
Screw material | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal |
Screw hardness | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 |
Shaft core material | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA |
For different materials processing, we have several pelletizing systems for choice, all depends on customers' choice and production requirements.
About US
GS-Mach is a professional in plastic, rubber, chemical machinery researcher,designer and manufacturer with CE and ISO9001 certificates.
Orientated by the world market,we insist on strengthening our talents, innovating,refining our quality and improving the managment, aiming to supply our customer the best products and make the GS-mach a worldwide top machinery manufacturer and supplier.
Our business is consisted of three parts:GS-mach Extrusion,GS-mach Recycle and GS-mach Rubber Tech.
1)GS-mach Extrusion :specializing in the researching and manufacturing the machinery for plastic extruding, granulating, extrusion molding and extusion filament.
2)GS-mach Recycle :specializing in the researching and manufacturing the machinery for waste plastic,rubber and chemicals recycling.
3)GS-mach Rubber Tech :specializing in the rubber machinery researching and manufacturing.
GS-20 |
