Automatic Controlling System Plastic Pellet Extruder For PP NBR Modification

Name: Automatic Controlling System Plastic Pellet Extruder For PP NBR Modification
Brand: Nanjing GS-mach Extrusion Equipment Co.,Ltd
SKU: GS65
Availability: InStock

Product Details

Place of Origin: Made in Nanjing

Brand Name: GS-mach

Certification: CE SGS

Model Number: GS65

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: wooden cases or pallets

Delivery Time: 30 days

Supply Ability: 100 set/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                granules making machine, extruder pellet machine


Process Material:	PP+NBR Modification	Application:	PP+NBR
Capacity:	300~400kg/h	Voltage:	220V/380V/440V/3P
Type:	Twin Screw Extruder	Cutting System:	Water Cooling Cutting System

Process Material:	PP+NBR Modification
Application:	PP+NBR
Capacity:	300~400kg/h
Voltage:	220V/380V/440V/3P
Type:	Twin Screw Extruder
Cutting System:	Water Cooling Cutting System

Product Description

PP+NBR modification plastic pellet extruder with 300~400kg/h of water cooling cutting system

General Introduction

Twin screw extruder adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality.
This line has good mixing, dispersion and extrusion performance, which will help make top quality flame retardant pellets for PP+NBR

PP+NBR modification plastic pellet extruder with 300~400kg/h of water cooling cutting system

is designed by using the “toy bricks”principle, which can make the plastic extrusion machine changed according to the materials properties and process technology easily. It is possible for one machine reach the extensive performance and special purpose in many place.

Machine Model

Model	Diameter (mm)	L/D	Screw rotary speed (r/min)	Motor power(kw)	Torque(N.M)	Capacity(kg/h)
GS-40B	41	32-52	400	22	263	90-150
GS-52B	51.5	32-64	600	75	597	225-250
GS-65B	62.4	32-64	600	90	716	250-300
GS-75B	71	32-64	600	132	1050	350-550
GS-95B	93	32-64	600	315	2506	800-1200

Process draft

300L High speed Mixer---Spiral Screw Feeder---GS-65 Twin screw extruder---hydraulic automatical screen exchanger—Water cooling die face hot cutting--- centrifugal dehydrator--- vibrator screen --Silo

Other Details

------Packing type: Wooden base plate,damp proof plastic lining,fully-closed plate-box external
------Delivery time: 45 days after receive the payment of deposit
------Payment: Deposit 40% by T/T in advance,delivery against payment of 60% balance after qualified acceptance
------Leave factory testing: before leaving factory,equipment should be tested by both parties.Test material offered by buyer
------Installation: we will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement;the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD50.For each technician/one day,estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after leaving factory,damaged
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
------The buyer shall provide the facilities and preparations:(Delivery machine to finish)
------foundation and adapter power supply water and compressed air pipe and related projects
------other interface equipment not listed above
------trial use of the raw material and product testing, inspection

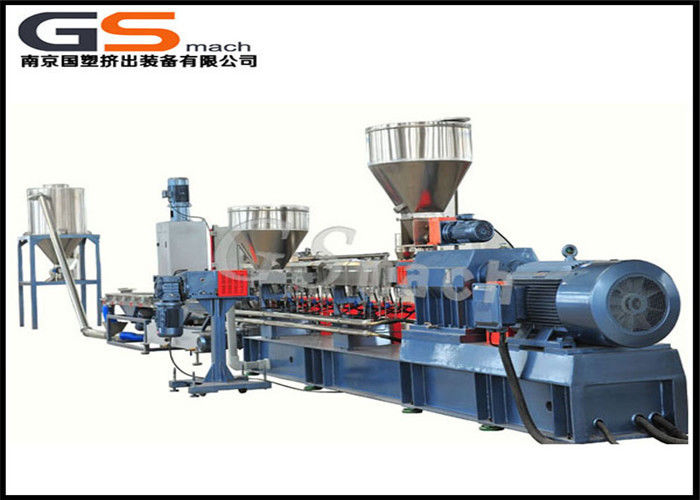

Machine Picture:
Automatic Controlling System Plastic Pellet Extruder For PP NBR Modification
