Nanjing GS-mach Extrusion Equipment Co.,Ltd
24H Hotline:+86-18851021602 +86-15195907172
Place of Origin: | Made in Nanjing |
Brand Name: | GS-mach |
Certification: | CE SGS |
Model Number: | GS65 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | wooden cases or pallets |
Delivery Time: | 30 days |
Supply Ability: | 100 set/ month |
Process Material: | EVA TPE TPU TPR Thermoplastic | Application: | Thermoplastic |
---|---|---|---|
Capacity: | 200~300kg/h | Type: | Twin Screw Extruder |
Cutting System: | Underwater Cutting System | L/D: | 44:1 |
Co-rotation parallel twin screw extruder machine of plastic pellet extruder with underwater cutting pelletizing system
Application:
1. the main material is PE+CaCO3
2. the metering feeders are equipped with single screw, twin screw, hollow screw, forced feeding ,side-feeding, etc
3. different requirementsof feeding, such as power, pellet, lump and luqid material.
Introduction:
UW series of under water pelletizing system is a special kind of die face hot-cutting system, primarily applied in some materials unable to pelletize in traditional pelletizing ways, such as strands-cutting, air-cooling (water-ring) die face hot-cutting, or shape of granulate with special requirements, such as micro-size granulate process.
Processing:
1. Extruder
2. Exchanger network
3. Melt transfer valves
4. The cutting machine
5. The circulation line
6. Flowmeter
7. Heat exchange equipment
8. Water pumps
9. Water pumps
10. Long-distance divider
11. Dehydration desk
12. Ribrating sieve
13. Wind desk

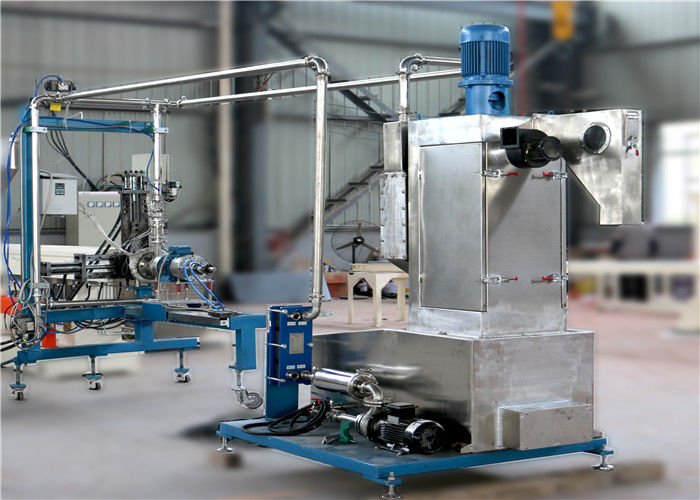

Machine Picture:
