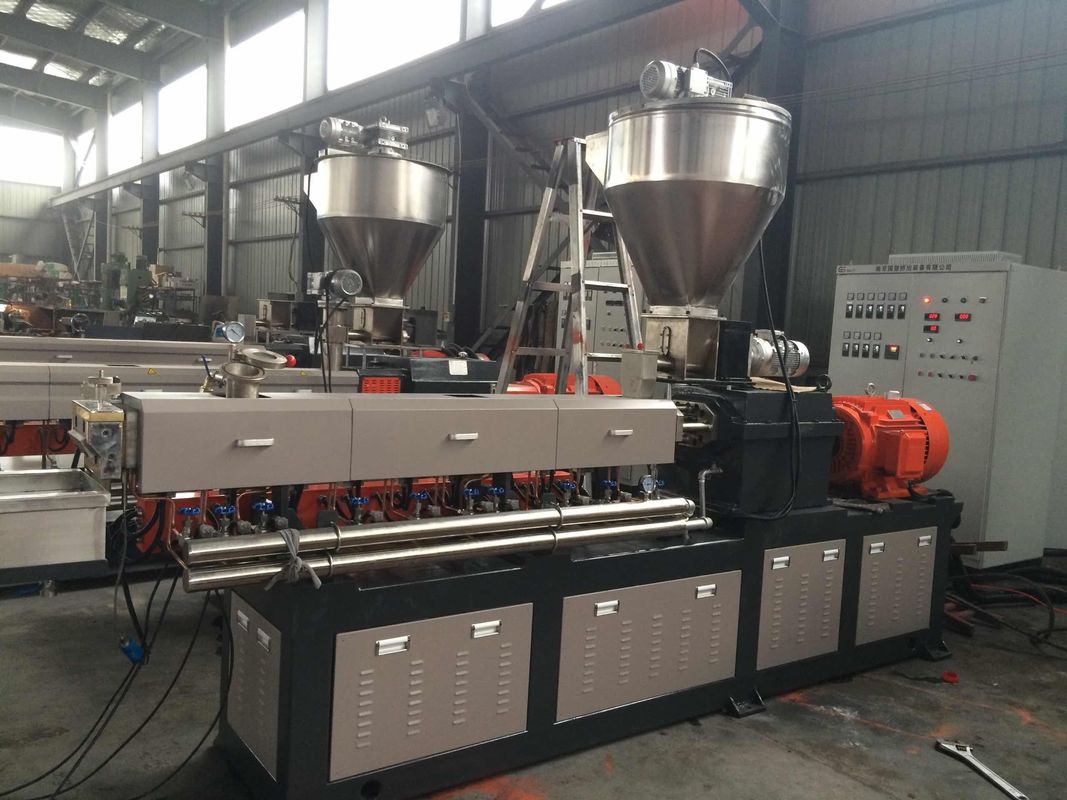

AS/PA/PC Carbon Fiber Plastic Pellet Extruder High Efficiency Heat Transfer

Product Details:

Place of Origin:	Made in Nanjing
Brand Name:	GS-mach
Certification:	CE SGS
Model Number:	GS65

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	wooden cases or pallets
Delivery Time:	30 days
Supply Ability:	100 set/ month

Contact Now

Detailed Product Description

Process Material:	PP/PBT/ABS/AS/PA/PC+Carbon Fiber	Application:	Plastic Granules
Capacity:	200~300kg/h	Type:	Twin Screw Extruder
Cutting System:	Water Strand Cutting System	L/D:	44:1

AS/PA/PC Carbon Fiber Plastic Pellet Extruder High Efficiency Heat Transfer

Machine Information:

Innovated design of heater tightened style insures high efficiency of heat transfer.
New-style gear transmission system:
1. New-style project of parallel three-axises driving makes the convey axis.
2. The key bearings are imported from WorldTop brand.
3. The compact design to optimize gear parameters and strengthen safe overmeasure.
4. Technics,strengthening of tooth face, ensure high torque,high precision and low noise
5. Spraying lubriation in drive comp dainty.

Machine Introduction:

The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.

Machine Model:

Model	Diameter(mm)	L/D	RPM (r/min)	Power (Kw)	Torque(N.m)	T/N	Capacity (Kg/h)
GS-20	20	32-44	600	5.5	30	4.8	6.5-15
GS-36	36	32-48	600	15	115	4.2	30-75
GS-51A	51	32-52	500	45	405	5.1	100-200
GS-51B	51	32-52	600	55	415	5.2	150-25
GS-63A	63	32-62	400	55	620	4.4	160-250
GS-63A	63	32-62	500	75	675	4.8	200-300
GS-63B	63	32-64	600	90	675	4.8	225-375
GS-63B	63	32-64	800	110	620	4.4	300-500
GS-75A	72	32-64	400	90	1015	4.7	225-350
GS-75A	72	32-64	500	110	1005	4.6	300-550
GS-75B	72	32-64	600	132	990	4.6	400-650
GS-75B	72	32-64	800	160	900	4.2	480-800
GS-92A	92	32-64	400	250	2815	5.9	650-1050
GS-92A	92	32-64	500	250	2250	4.7	750-1250
GS-92B	92	32-64	600	280	2365	5.0	900-1500
GS-92B	92	32-64	800	280	2250	4.7	1200-2000
GS-135A	135	32-48	400	315	6190	4.6	1500-2500
GS-135B	135	32-48	500	400	6750	5.1	200-3500
