GS-mach is a professional plastic,rubber and chemicals machinery researcher,designer and manufacturer with CE&ISO9001 certificates
Our Plastic granulator included twin screw extruder compound line,single screw extruder pelletizing line, two stage granules making machine, kneader compound line with all kinds of cutting system.

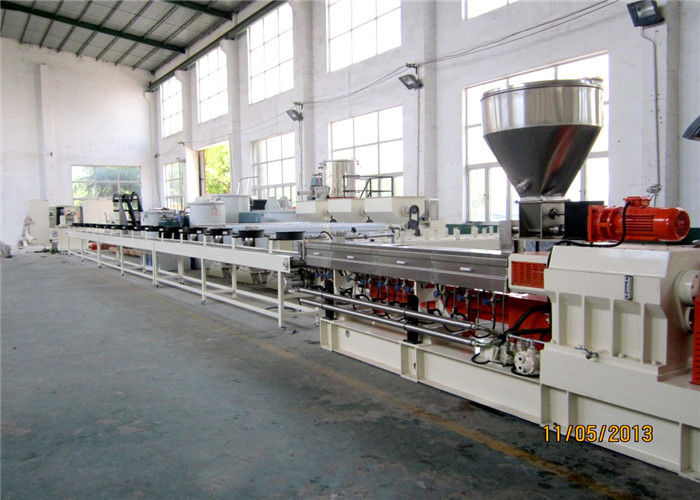

Application of Masterbatch machine water cooling strand pelletizing system:
Glass-filled reinforcement: PP, PA, PC, ABS, PPS, PET, PBT+glass fibre
Compounding and blending: PC+ABS, PA+ABS, PP+EPDM, PP+SBS
Color master batch: PP, PE, PS, PBT, PET, ABS, EVA+color pigment
Incorporation of fillers: PP, PA, PC, ABS, PPS, PET,PBT+CaCo3, TALC
Compounds for cable and other pelletizing Degassing
Machine Model
| Model |
GS-20 |
GS-35 |
GS-50 |
GS-65 |
GS-75 |
GS-95 |
| Mai motor |
4 |
45-22 |
37-65 |
45-75 |
75-160 |
132-250 |
| Screw diameter |
21 |
35.6 |
50.5 |
62.4 |
71 |
93 |
| L/D |
28-40 |
28-48 |
28-64 |
28-64 |
28-64 |
28-64 |
| Rotate speed(rpm) |
0-600 |
0-600 |
0-600 |
0-600 |
0-600 |
0-600 |
| Screw material |
bi-metal |
bi-metal |
bi-metal |
bi-metal |
bi-metal |
bi-metal |
| Screw hardness |
HRC65-70 |
HRC65-70 |
HRC65-70 |
HRC65-70 |
HRC65-70 |
HRC65-70 |
| Shaft core material |
40CrNiMoA |
40CrNiMoA |
40CrNiMoA |
40CrNiMoA |
40CrNiMoA |
40CrNiMoA |
Machine Charactor:
1. Application to Parallel co-rotating twin screw extruders have excellent mixing performance,good self cleaning performance and flexible modular configuration characteristics which make
2. Them suitable for processing different types of material systems,and are extensively used in fields of polymer processing ,foodstuff processing and chemical products, especially for various high molecular materials.
3. In most cases ,parallel co-rotating twin screw extruders are used as mixing equipments .ln processing high molecular materials,the modification process and master batch preparation of polyolefin materials and engineering plastics require sufficient and intensive mixing,which differs depending on material systems, Excellent equipment performance,reasonable mixing process, advanced combination technique and rich processing experience are the key factors determining the success and efficiency of mixing
