Air cooling PVC cable granulator pelletizing machine twin screw extruder
General Information
PVC cable granulator is based on PVC as the base resin, adding environment-friendly calcium / zinc composite stabilizer, two octyl phthalate, phthalic acid two formic acid, two octyl terephthalate and three octyl polybenzoic acid, three octyl ester plasticizer.
PVC cable pelletizer uses two-stage granulator. The first order is a high-speed co-rotating twin screw extruder. The second order is a single screw extruder, which consists of two order type composite units. The basic structure forms are: double screw high-speed, strong mixing and single screw low speed, low temperature, and weak shear characteristics are combined, and it is the present thermosensitivity, and the shear sensitive material is highly mixed and modified. First choice model.
Applicable to: PVC cable material granulator, sole material, transparent bottle material, medical material, low smoke halogen free or halogen free flame retardant cable material, EVA shielding material, PE/EVA carbon black masterbatch and other crosslinked cable materials, irradiation crosslinked cable material production.
Machine Composition
| Model |
Machine |
Quantity |
| 1 |
110L Kneader |
1 set |
| 2 |
Conveyor |
1 set |
| 3 |
Twin screw force feeder |
1 set |
| 4 |
GS-75 twin screw extruder |
1 set |
| 5 |
GSD=180 single screw extruder |
1 set |
| 6 |
Electrical control system |
1 set |
| 7 |
Air cooling hot cutting system |
1 set |
Advantages:
1, excellent mixing effect and easy temperature control.
2, the use of small power and area
3, raw material mixing and pelleting process is fully automatic (automatic connection control), reduce personnel operation. This set of equipment does not require special operation technology to produce high quality products.
4. It has excellent safety and easy temperature control. Therefore, it reduces the damage and deterioration of raw materials.
Main Technical Parameters:
| Kneader |
Capacity |
110L |
| Output |
100-140 kg/batch |
| Motor power |
180 kw |
| GS-75 twin screw extruder |
Main motor power |
132 kw |
| screw diameter |
71 mm |
| Screw L/D |
36:1 |
| GSD-180 single screw extruder |
Main motor power |
75kw |
| Screw diameter |
180 mm |
| screw L/D |
9:1 |
After-sale service & Technology support:
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* Inquiry and consulting support
* Quick reply.
* View our factory
After-sales service
* Traning how to install the machine ,tranning how to use the machine
* Engineers are avaiable to service machinery overseas
* One year guarantee for the machine expect the spare part ,we can supply lifelong technology service to slove any problem form you .

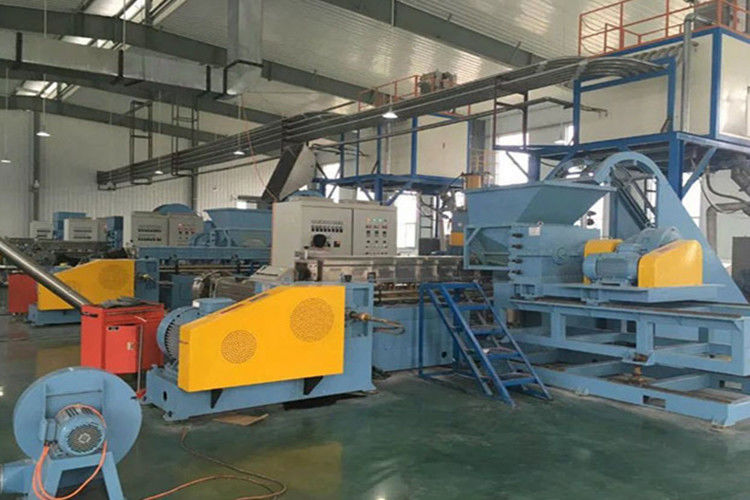

Product Picture:
