Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE SGS
Model Number: GS-75
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden cases or pallets
Delivery Time: 45 days after payment of deposit
Supply Ability: 100 set/ month
Warranty: |
12 Months |
Application: |
Granulation |
Screw: |
Twin Screw |
Delivery Time: |
45 Days After Payment Of Deposit |
Oversea Service: |
Installation,staff Trainning |
Cutting System: |
Under Water |
Warranty: |
12 Months |
Application: |
Granulation |
Screw: |
Twin Screw |
Delivery Time: |
45 Days After Payment Of Deposit |
Oversea Service: |
Installation,staff Trainning |
Cutting System: |
Under Water |

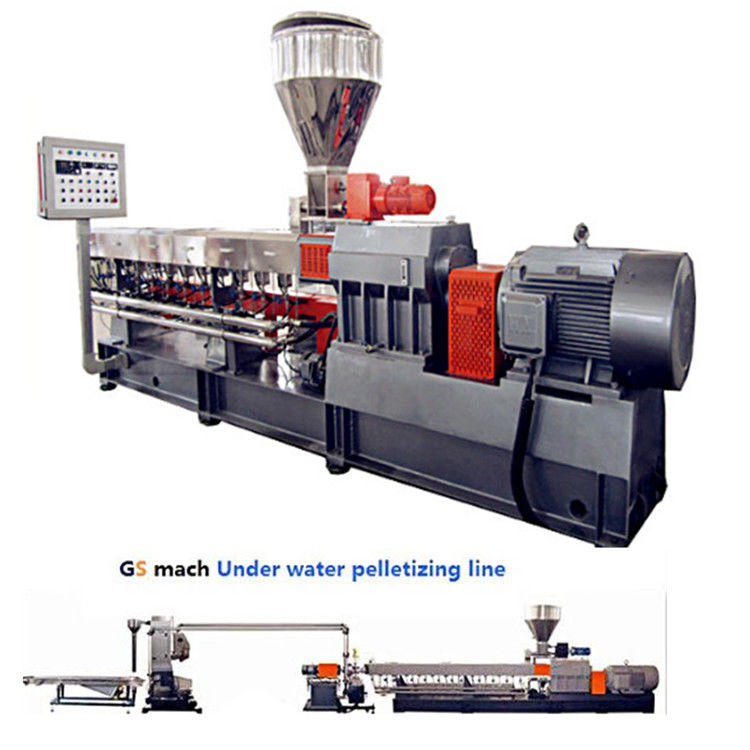

300 - 400 Kg / H Double Screw Extruder Machine With Under Water Pelletizing System
300 - 400 kg/h Twin screw extruder machine with under water pelletizing system
This twin screw extruder is designed by using the “toy bricks”principle, which can make the plastic extrusion machine changed according to the materials properties and process technology easily. It is possible for one machine reach the extensive performance and special purpose in many place.
This line have 6 main types with different output which cover nearly all kinds of special and common application requirements of extruders. We believe each type of extruder has its best application condition. You could select the extruder type according to your special demands.
Application of Cheap price plastic twin screw extruder with water ring pelletizing system:PE, EVA etc filled with CaCo3, talc, TiO2, carbon black etc.
Cable sheath, cable insulation compounds of LDPE, HDPE, LLDPE.
TPR, TPU thermoplastic elastomers; EVA and hot-melt adhesives color concentrates of PE, ABS, PS, EVA, etc.
Models
| Model | GS-50 | GS-65 | GS-75 | GS-95 |
| Main motor | 35-75 | 45-75 | 75-100 | 132-250 |
| Screw diameter | 50.5 | 62.4 | 71 | 93 |
| L/D | 28-64 | 28-64 | 28-64 | 28-64 |
| Rotate speed | 0-600 | 0-600 | 0-600 | 0-600 |
| Screw material | bi-metal | bi-metal | bi-metal | bi-metal |
Specification of GS-75 twin screw extruder
| Model | GS-75 |
| Capacity | 300-400 kg/h |
| Main Motor | 75-160 |
| Screw Diameter | 71 |
| Rotate speed (rpm) | 0-600 |
| Screw Material | bi-metal |
| L/D | 44:1 |
Machine Composition
twin screw force feeder - twin screw extruder - electrical control system - under water pelletizing system
Underwater pelletizing system
----Move able support cart
-----Pelletizing motor
-----Hydraulic unit
-----Cutter shaft
-----Cutter hubs
-----Heating bar 8 x 0.6 KW
-----Special heat isolation
Engineer available service machinery overseas.
Before sales
1. introduce products and application details
2.recommend suitable solutions
3. provide with reference information
During manufacturing
1. provide with layout and engineering conditions
2.inform the processing conditions
3. offer other documents
After Sales
1.provide with installation and training
2.offer spare parts
3. Provide with necessary technical support.
