Twin screw extruder Compound Pelletizing Line PP PE Filler Conveyor Belt
Water demand:
1)Recycling water:water pressure:～0.45MPa
2)Water temperature:≤38℃
3)Industrial soft water(none-ion water )water temperature ≤38℃
4)Circulating water: for barrels cooling; using soft water(distilled water) to prevent scale
5)External circulating water: for cooling internal circulating water and water trough
6)Water supply suggestion: build pool 25~30m3outside of workshop and pump the water
Features:
- Machine color:main frame:Barley white and orange cabinet color:computer color
-
Pelletizing craft :
High speed mixer---Spiral Material Loader----twin screw metering feeder---GS-95 Twin screw extruder---Hydraulic Screen Changer---die head strand ---Conveyor belt--- Pelletizer
-
Main motor:
(1)Y2 type level 4 AC motor
(2)Power: 250kw
(3)main motor rotation speed:1480rpm
(4)Adjust Speed Method: adopting”Dongyuan” AC frequency conversion speed
-
Screw
(1)Diameter:φ93mm
(2)L/D:44:1
(3)Screw building block structure;divided into conveying screw block, mixing screw block, kneading screw block and reverse rotary screw block; Screw parts is in tandem array.
(4)Screw element material is W6MO5CR4V2, high temperature vacuum quench
Main technical parameter:
Spiral Load Feeder--->GS 95D Twin Screw Extruder--->Electrical Control System---> Pelleting system
| Output: |
1650-2750 kg/h |
| Occupied Area: |
12*2*3m(L, W, H) |
| Weight: |
1TON |
| L/D |
32-60 |
| R/min |
600 |
| Material: |
filler masterbatch |
| Delivery: |
45 day |
| Diameter |
93 |
Contact
Nanjing GS-mach Extrusion Equipment Co.,Ltd
No.12 Shanghu Industrial Park,Jiangning Street, Jiangning District,Nanjing China
Mobile Phone/whatsapp: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com

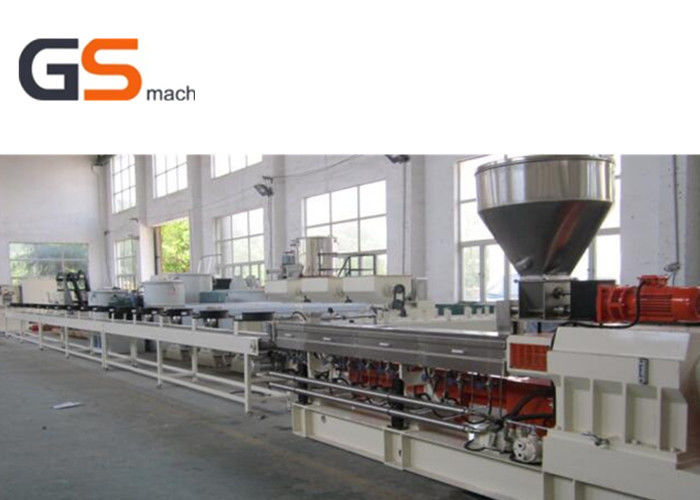

Product Picture:
