Home > products > Double Screw Extruder > TPU Elastomer Double Screw Extruder Underwater Pelletizing Extrusion Line

TPU Elastomer Double Screw Extruder Underwater Pelletizing Extrusion Line

Name: TPU Elastomer Double Screw Extruder Underwater Pelletizing Extrusion Line
Brand: Nanjing GS-mach Extrusion Equipment Co.,Ltd
SKU: GS-65
Availability: InStock

Product Details

Place of Origin: Made in China

Brand Name: GS-mach

Certification: CE ISO9001

Model Number: GS-65

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: Wooden cases or pallets

Delivery Time: 30 days

Supply Ability: 100 sets/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                twin screw compounding extruder, plastic pelletizing line


Process Material:	TPU Elastomer	Capacity:	200~300kg/h
Voltage:	380V/22V/440V/3P	Size:	1212.1m
Type:	High Torque	Invertor:	ABB And Famous Brand

Process Material:	TPU Elastomer
Capacity:	200~300kg/h
Voltage:	380V/22V/440V/3P
Size:	1212.1m
Type:	High Torque
Invertor:	ABB And Famous Brand

Product Description

TPU elastomer Underwater pelletizing extrusion line of double screw extruder with 200~300kg/h

Machine Introduction:

The Underwater Pelletizer from GS mach is suitable for the pelletizing of most thermoplastics. It is used preferably for the processing of sticky products and for high throughput rates. In addition, the Underwater Pelletizer from Kerke is an integral part of all compounding plants for polyolefins

Model	Screw Dia D (mm)	L/D Ratio	Screw speed N (r/min)	Motor power P (KW)	Output Q (kg/h)
GS-20	21.7	28~40	600	3/4	3~15
GS-35	35.5	28~56	500	11 / 15	20~70
GS-50	50.5	28~56	500	45 / 55 / 75	80~150
GS-52B	51.4	28~56	400/500/600/800	45/55/75	120~280
GS-65	62.4	28~56	500 / 600	55 / 75 / 90	150~300
GS-65B	62.4	28~56	400/500/600/800	90/110	200~500
GS-75	71	28~56	500 / 600	90 /110 /132	300~550
GS-75B	71	28~56	400/500/600/800	110/132/180	300~700
GS-95	93	28~56	400 / 500	250 / 315	600~1000

Machine Details:

Screw and barrel:

Screw elements:
Designed by modular principle.
Precise processed, agile combination
Self-cleaning,transmission,compounding

Twin screw extruder screw element:

· convenient interchangeability by agile combination.

· fulfill efficient self-cleaning, transmission, compounding, pressure-forming, etc.

· made of high tool speed W6Mo5Cr4V2, or anti-corrosion steel 38CrMoAlA by special treatment.

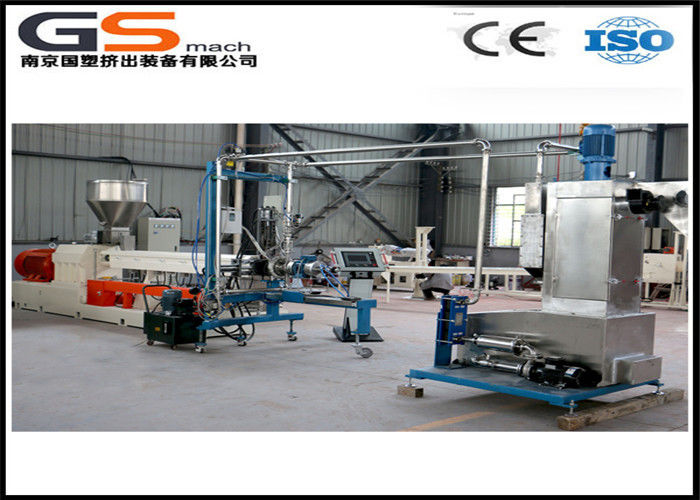

Machine Picture:

TPU Elastomer Double Screw Extruder Underwater Pelletizing Extrusion Line
