Place of Origin: | Made in Nanjing |
Brand Name: | GS-mach |
Certification: | CE SGS |
Model Number: | GS-20/35/50/65/75/95/135 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | wooden cases or pallets |
Delivery Time: | 45 days after payment of deposit |
Supply Ability: | 100 set/ month |
Process Material: | Filler Masterbatch | Application: | Granulation |
---|---|---|---|
Supplier: | Factory Direct | Type: | Double Screw Extruder |
Design: | Depending On Customer | OEM Service: | Offered |
Factory Direct Filler Masterbatch Machine Plastic Extruder Production Line
General description:
1. Long groove between feed throat and screw to improve output highly
2. Accurate temperature control system onfeed section to match different plastics
3. Unique screw design to achieve higher plasticizing and products quality
4. Gearbox of high torsion balance to realize stable runing
5. Hshape frame to decrease vibrating
6. PLC(Simatic Multi Panel) operation panel to ensure synchronization
7. Energy conservation easy to maintenance.
Machine Model:
Model | Series | Diameter | L/D | R/min | Capacity (kg/h) |
GS-20 | A | 21.7 | 32-60 | 400 | 2-10 |
B | 600 | 5-15 | |||
GS-35 | A | 35.6 | 32-60 | 400 | 10-40 |
B | 600 | 15-55 | |||
C | 600 | 40-95 | |||
D | 600 | 70-120 | |||
GS-50 | A | 50.5 | 32-60 | 500 | 120-200 |
B | 600 | 155-255 | |||
C | 600 | 200-355 | |||
D | 600 | 255-400 | |||
GS-65 | A | 62.4 | 32-60 | 500 | 200-355 |
B | 600 | 255-400 | |||
C | 600 | 300-550 | |||
D | 600 | 500-850 | |||
GS-75 | A | 71 | 32-60 | 500 | 300-550 |
B | 600 | 450-750 | |||
C | 600 | 500-850 | |||
D | 600 | 750-1250 | |||
GS-95 | A | 93 | 32-60 | 500 | 750-1250 |
B | 600 | 950-1600 | |||
C | 600 | 1350-2250 | |||
D | 600 | 1650-2750 | |||
GS-135 | A | 133 | 32-60 | 400 | 1650-2750 |
B | 500 | 2250-3750 | |||
C | 500 | 3000-5000 | |||
D | 500 | 4500-7500 |
Machine Parameter
1 | Material | Filler Masterbatch |
2 | Diameter | 21.7-133 mm |
3 | Power | Max 550Kw |
4 | Max capacity | 2750KG/H |
5 | N.m range | 4.2-8.7 |
6 | Speed | 400-600 r/min |
7 | Management system | CE, ISO9001 |
8 | L*W*H | 13*2.4*2.3 m |

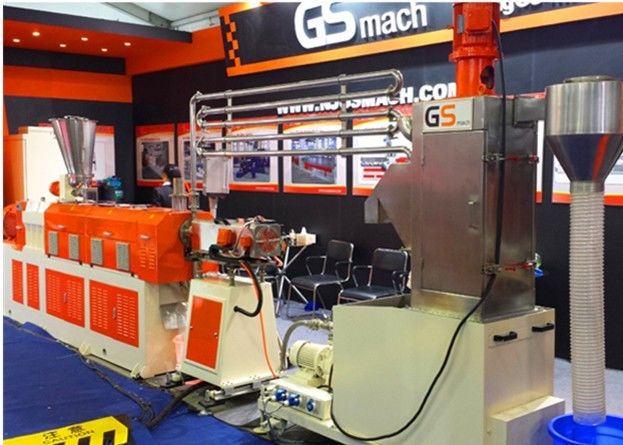

Machine Picture:
