Mixer PVC cable material granulator Pelletizing Machine Air Cooling Hot Cutting
PVC is the most common sheath material used in wire and cable. It has many advantages, including excellent electrical properties, flexibility, corrosion resistance, high-speed processability, flame retardant self-extinguishing, and cheap. Therefore, it is widely used in various power cables, control cables, and electronic cables.
Like many thermoplastics, when the PVC resin stays at a high temperature for a long time, the dechlorination reaction occurs, it starts degrading. In order to improve the hot workability of PVC materials, lead-containing materials are used as stabilizers. Lead stabilizers have excellent stability, low cost, and excellent electrical properties.
Machine Composition
| Model | Machine | Quantity |
| 1 | 110L Kneader | 1 set |
| 2 | Conveyor | 1 set |
| 3 | Twin screw force feeder | 1 set |
| 4 | GS-75 twin screw extruder | 1 set |
| 5 | GSD=180 single screw extruder | 1 set |
| 6 | Electrical control system | 1 set |
| 7 | Air cooling hot cutting system | 1 set |
PVC cable material granulator process:
1.After the PVC material is put into the high-speed mixer, the powder material is put into the upper parallel twin-screw extruder through the screw feeder.
2.The upper parallel parallel twin-screw extruder mixes the materials evenly, and plasticizing and kneading, well dispersed are completed at a temperature of 140-160 ° C. The post-extruded mixture became a melt (temperature between 130-140 ° C) and fell directly into the large-caliber lower-stage single-screw extruder.
3.Low-stage single-screw extruder makes 120°C melt complete extrusion granulation at low speed, high pressure and cooling environment. The temperature has fallen to 120-140 degrees when extrusion. At this time, the air cooling hot cutting can be completed, and it is ensured that the particles are not clad in the process of cutting.
4.Granules cutting by air cooling hot cutting system, cooling down by the two stage cyclone separator, the granules temperature drops to 35-40 degrees centigrade, then the air cooling lengthened vibrating screen reduces the granules temperature to room temperature so as to send it into the finished product silo for packaging.
Main Technical Parameters:
| Kneader | Capacity | 110L |
| Output | 100-140 kg/batch |
| Motor power | 180 kw |
| GS-75 twin screw extruder | Main motor power | 132 kw |
| screw diameter | 71 mm |
| Screw L/D | 36:1 |
| GSD-180 single screw extruder | Main motor power | 75kw |
| Screw diameter | 180 mm |
| screw L/D | 9:1 |
Operation steps of PVC cable granulator
1.Copper and aluminum monofilament pulling
2.Monofilament annealing
3.Stranding of conductors
4.Insulated extrusion
5.Cable forming
6.Inner protective layer
7.Armoring
8.Outer sheath
After-sale service & Technical support:
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* Inquiry and consulting support
* Quick reply.
* View our factory
After-sales service
* Traning how to install the machine, training how to use the machine
* Engineers are available to service machinery overseas
* One year guarantee for the machine expect the spare part, we can supply lifelong technology service to solve any problem form you.
Contact
Nanjing GS-mach Extrusion Equipment Co., Ltd
No.12 Shanghu Industrial Park,Jiangning Street, Jiangning District, Nanjing China
Mobile Phone/ Whatsapp: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com
Web: http://www.plasticpelletextruder.com

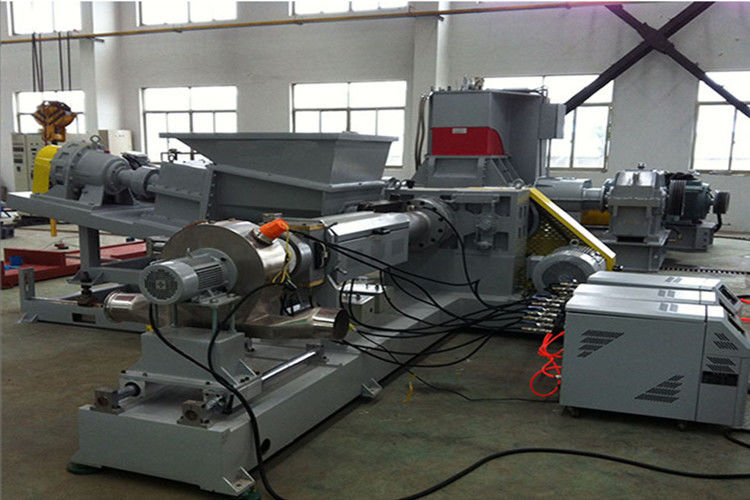

Product Picture:
