Place of Origin: | Made in China |
Brand Name: | GS-mach |
Certification: | CE ISO9001 |
Model Number: | GS-65 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | Wooden base plate, damp proof plastic lining, fully-closed plate-box external |
Delivery Time: | 45 days after payment of deposit |
Payment Terms: | Western Union, MoneyGram, L/C, T/T |
Supply Ability: | 100 sets/ month |
Oversea Service: | Installation,staff Trainning | Warranty: | 12 Months |
---|---|---|---|
Supplier: | Factory Direct | Processing Material: | PET Flakes |
Pelleting System: | Air Cooling Hot Cutting System | OEM Scrvice: | Offered |

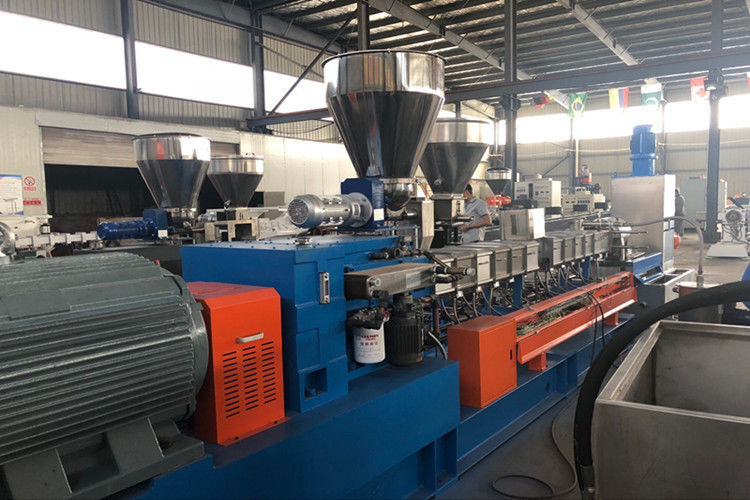

300 kg/h Twin screw extruder PET Recycle Plastic Pelletizing Machine air cooling
General Information
Twin screw extruder adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality. This line has good mixing, dispersion and extrusion performance, which will help make top quality pellets.
In most cases, twin screw extruders are used as mixing equipment in processing high molecular materials, the modification process and masterbatch preparation of polyolefin materials and engineering plastics require sufficient and intensive mixing, which differs depending on material systems. Excellent equipment performance, reasonable mixing process, advanced combination technique and rich processing experience are the key factors determining the success and efficiency of mixing.
Machine Composition
Model | Machine | Quantity |
1 | Spiral Loader Feeder | 1 set |
2 | GS-65 twin screw extruder | 1 set |
3 | Electrical control system | 1 set |
4 | Air cooling hot cutting system | 1 set |
Twin screw extruder Models
Model | GS-20 | GS-35 | GS-50 | GS-65 | GS-75 | GS-95 |
Main Motor | 4 | 45-22 | 37-75 | 45-75 | 75-160 | 132-250 |
Screw diameter | 21 | 35.6 | 50.5 | 62.4 | 71 | 93 |
L/D | 28-40 | 28-48 | 28-64 | 28-64 | 28-64 | 28-64 |
Rotate speed (rpm) | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 |
Screw Material | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal |
Air cooling hot cutting system details
------die face pelletizer: power 2.2kw, “Delta” inventor.
------cover: stainless steel, one set
------First cyclone separator:φ800m stainless steel;φ160mm stainless steel pipes; flange connector; blower 5.5kw.
------screen vibrator:2.5m, one piece, stainless steel material,
------silo box:1m3; stainless steel; flange connector; blower 4kw.
Shipping and Packing
300 kg/h PVC compound for wire and cable Pelletizing Machine Twin screw extruder machine will be packed by wooden base plate, damp proof plastic lining, fully-closed plate-box external.
Deposit 40% by T/T in advance, delivery against payment of 60% balance after qualified acceptance.
Before leaving the factory, equipment should be tested by both parties. Test material offered by the buyer.
We will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement; the technician’s board and lodging and the round-trip airplane ticket expense undertake by the buyer, additional service charge USD50. For each technician/one day, estimate 5-7 working days
