1000 - 2000 kg/h Kneader Mixer Plastic Granulator Machine CE IS9001

Product Details:

Place of Origin:	Made in Nanjing
Brand Name:	GS-mach
Certification:	CE IS9001
Model Number:	GSD-180

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negoation
Packaging Details:	Wooden cases and pallets
Delivery Time:	30 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 sets/ month

Contact Now

Detailed Product Description

Diameter:	180 Mm	Motor Power:	210 Kw
Flat Area:	164.53.5 M	Voltage:	220V/380V/440V/3P
Kneader:	150 L	Application:	Granlator

1000 - 2000 kg/h Single Screw Extruder Kneader Mixer Plastic Granulator Machine

Specification

Model	Kneader	Kneader Motor Power	L/D	Diameter	Motor Power
GSD-180	150L	220KW	12-22;1	180MM	90-132KW

Kneader models

model	3 L	10 L	20 L	35 L	55 L	75 L	110 L
capacity	3 L	10 L	20 L	35 L	55 L	75 L	110 L
kg/batch	1.5-5	8-15	15-25	26-45	45-75	60-85	100-140
batch/h	4-6	4-6	4-6	4-6	4-6	4-6	4-6
pressure(MPA)	0.2-0.4	0.4-0.6	0.4-0.6	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Motor power(kw)	5.5	15	30	55	75	110	160
tilting motor(kw)	0.55	0.75	1.5	1.5	2.2	3.75	5.5
Air cylinder(mm)	120	160	200	250	300	350	420
Speed:RPM	39/30	39/30	39/30	39/30	39/30	39/30	39/30
Weight(kg)	1000	2300	4000	6500	8500	10000	14000

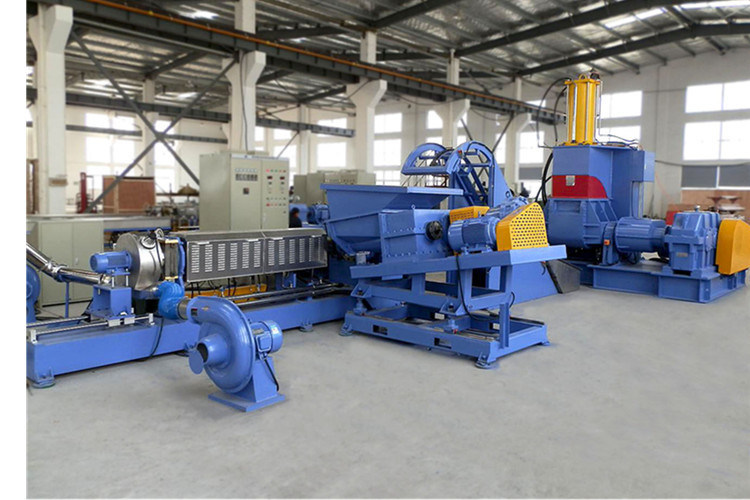

Machine Composition

1. Kneader

2. Conveyor

3. Twin Screw Force Feeder

4. Single Screw Extruder

5. Electrical Control System

6. pelleting system

Contact

Nanjing GS-mach Extrusion Equipment Co.,Ltd
No.1 Shanghu Industrial Park,Jiangning Street, Jiangning District,Nanjing China
Mobile Phone: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com
Web: http://www.plasticpelletextruder.com

Pelleting System

1. water ring pelleting system

1000 - 2000 kg/h Kneader Mixer Plastic Granulator Machine CE IS9001
