Place of Origin: | Made in Nanjing |
Brand Name: | GS-mach |
Certification: | CE SGS |
Model Number: | GS-20/35/50/65/75/95/135 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | wooden cases or pallets |
Delivery Time: | 45 days after payment of deposit |
Supply Ability: | 100 set/ month |
Material: | Filler Masterbatch | Automatic Grade: | Semi-automatic |
---|---|---|---|
Capacity: | 2-7500 Kg/h | Color: | Customized |
Design: | Depending On Customer | Screw Design: | Double Screw |
Custom Filler Masterbatch Equipment Plastic Twin Screw Extruder Granulation
Product introduction:
The screw of the extruder is equipped with barrier unit and mixing structure, and the barrel owns new style grooves. All of these offer good plastification and mixing effect. Special design of basket die head for HDPR large diameter pipe with thick wall offer lower melting temperature, good mixing, lower pressure of cavity, and stable production.
Main technical parameters:
Model | Diameter(mm) | L/D | Max.Out(kg/h) | Total Powder(kw) |
GS-20 | 21.7 | 32-60 | 2-10 | 3 |
GS-35 | 36.6 | 32-60 | 10-40 | 11 |
GS-50 | 50.5 | 32-60 | 120-200 | 45 |
GS-65 | 62.4 | 32-60 | 200-355 | 75 |
GS-75 | 71 | 32-60 | 300-550 | 110 |
GS-95 | 93 | 32-60 | 750-1250 | 250 |
GS-135 | 133 | 32-60 | 1650-2750 | 550 |

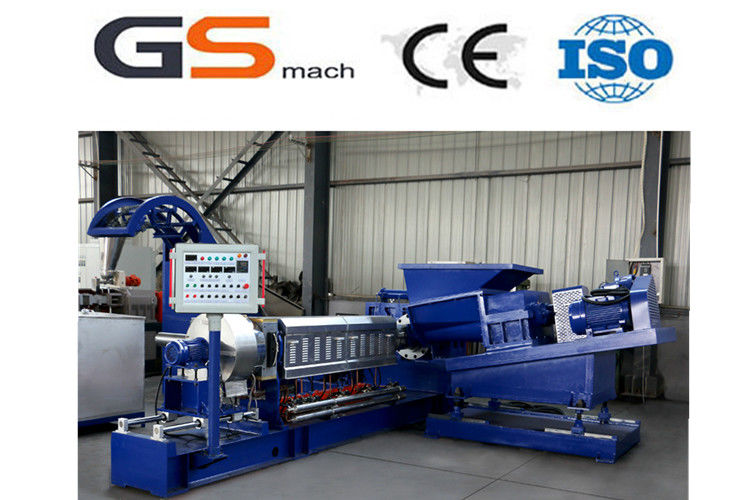

Product Picture:
