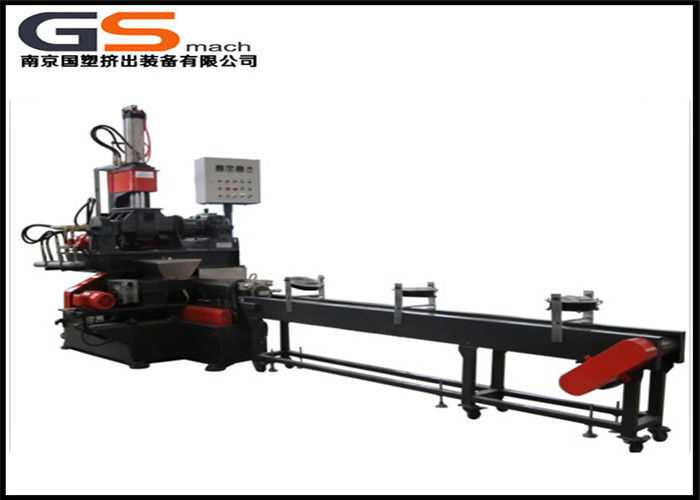

Laboratory Kneader Plastic Pellet Extruder Single Screw With Testing Material

Product Details:

Place of Origin:	Made in Nanjing
Brand Name:	GS-mach
Certification:	CE SGS
Model Number:	3L+30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	wooden cases or pallets
Delivery Time:	30 days
Supply Ability:	100 set/ month

Contact Now

Detailed Product Description

Process Material:	Compound Material	Capacity:	5~10kg/h
Cutting System:	Fans Cooling	Application:	University Or Factory
Model:	Kneader+single Screw Extruder

laboratory Kneader single Screw extruder plastic pellet extrudr with testing material

Machine Application:

Take up a little space,easier operation,lower maintenance rate.It is

commonly used in factory,lab,developed research,school etc.For

example:Shanghai University, Zhengzhou University,Wenzhou

University etc which all have our kneader lab machine and very

popular with them.

Characteristics:

Barrels:

1, Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in C areas smaller.

2, Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.

3, Barrels are made of high quality nitrided steel, with bimetallic liner.

Screw elements and kneading blocks:

Accurately designed , precise processed and agile combination with interchangeablity , can fulfill efficient self-cleaning, transmission, compounding , pressure-forming, etc. The screw made of high tool steel 38CrMoAlA, or W6Mo5Cr4V2 by special heat-treatment, possessing high corrosion-resistant and high wear-resistant functions.

Feeder system:

Metering feeders are equipped with sinlge screw, twin screw, hollow screw, forced-feeding, side-feeding, liquid- adding system etc. to meet different requirements of feeding, such as powder, pellets, lump material and liquid material.

Machine Type:

Model Parameter	Kneader	Kneader Motor Power	L/D	Screw Dia.	Single Screw Motor Power
GSD-100	35L	55kw	12-22:1	100mm	37-55kw
GSD-120	55L-75L	75-110kw	12-22:1	120mm	55-75kw
GSD-150	110L	160kw	12-22:1	150mm	75-110kw
GSD-180	150L	220kw	12-22:1	180mm	90-132kw
