Place of Origin: | Made in Nanjing |
Brand Name: | GS-mach |
Certification: | CE IS9001 |
Model Number: | GSD-100/120/150/180 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negoation |
Packaging Details: | Wooden base plate, damp proof plastic lining, fully-closed plate-box external |
Delivery Time: | 45 days after payment of deposit |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 100 sets/ month |
Brand Name: | GS-mach | Total Power: | 37-137 Kw |
---|---|---|---|
Raw Material: | PP + Caco3 | Labor: | 1-2 People |
Oversea Service: | Installation,staff Trainning | Design: | Depending On Customer |

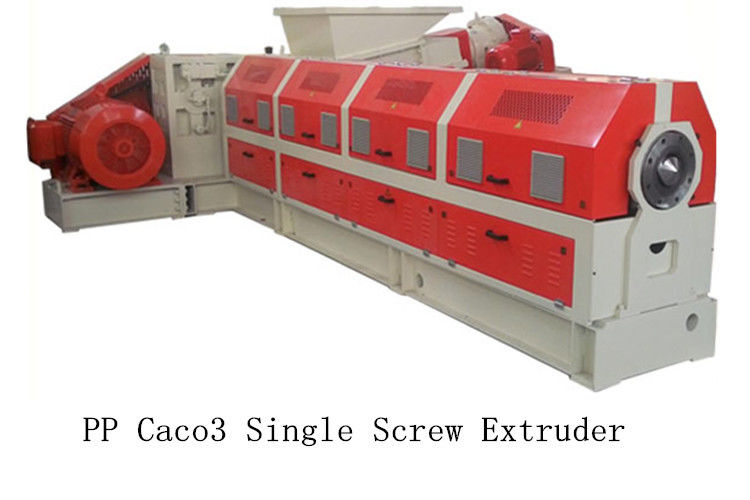

PP Caco3 Single Screw Extruder Making Machine Water Ring Pelletizing System
General Introduction
The control system of single screw extruder is mainly used to control the process parameters, such as screw speed, barrel temperature and melt pressure in the extrusion process. Including instrument control system, PLC control system. The former pressure control shows the melt pressure, and the test function shows only the function. The latter shows the melt pressure and realizes the closed loop control, and realizes the serial communication of the test unit.
Models
Model | Kneader | Kneader Motor Power | L/D | Diameter | Motor Power |
GSD-100 | 35L | 55KW | 12-22;1 | 100MM | 37-55KW |
GSD-120 | 55L-75L | 75-110KW | 12-22;1 | 120MM | 55-75KW |
GSD-150 | 110L | 160KW | 12-22;1 | 150MM | 75-110KW |
GSD-180 | 150L | 220KW | 12-22;1 | 180MM | 90-132KW |
Machine Composition
1. Kneader
2. Conveyor
3. Twin Screw Force Feeder
.
4. Single Screw Extruder
5. Electric Control System
6. Water ring cutting System
Shipping and packing
All products are packed by wooden base plate, damp proof plastic lining, fully-closed plate-box external. we will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement; the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer.
About Water Ring Pelletizing System
------Water-ring hot cutting pelletizer: 2.2kw, one set
------Adjust Speed Method: adopting ”ABB” AC frequency inverter
------Hot cutting cover: Stainless steel. 1pc
------Water pump:one set,power: 4kw
------Diversion trench: stainless steel material,1PC
-----Centrifugal dehydrator:one set,7.5kw
-----Dehydration vibrating screen:one set,0.35kw,2.5Meter length
-----dyer silo:one set,including 1m3 silo,4kw blower,adoptφ160 soft pipe.
