Place of Origin: | Made in Nanjing |
Brand Name: | GS-mach |
Certification: | CE IS9001 |
Model Number: | GSD-100/120/150/180 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negoation |
Packaging Details: | Wooden base plate, damp proof plastic lining, fully-closed plate-box external |
Delivery Time: | 45 days after payment of deposit |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 100 sets/ month |
Brand Name: | GS-mach | Total Power: | 180 KW |
---|---|---|---|
Plastic Processed: | Losf,PVC,EVA,filler Masterbatch | Air Supply: | 6-8 Kg |
Area: | 22*6.6*3.4 M | Labor: | 1-3 |

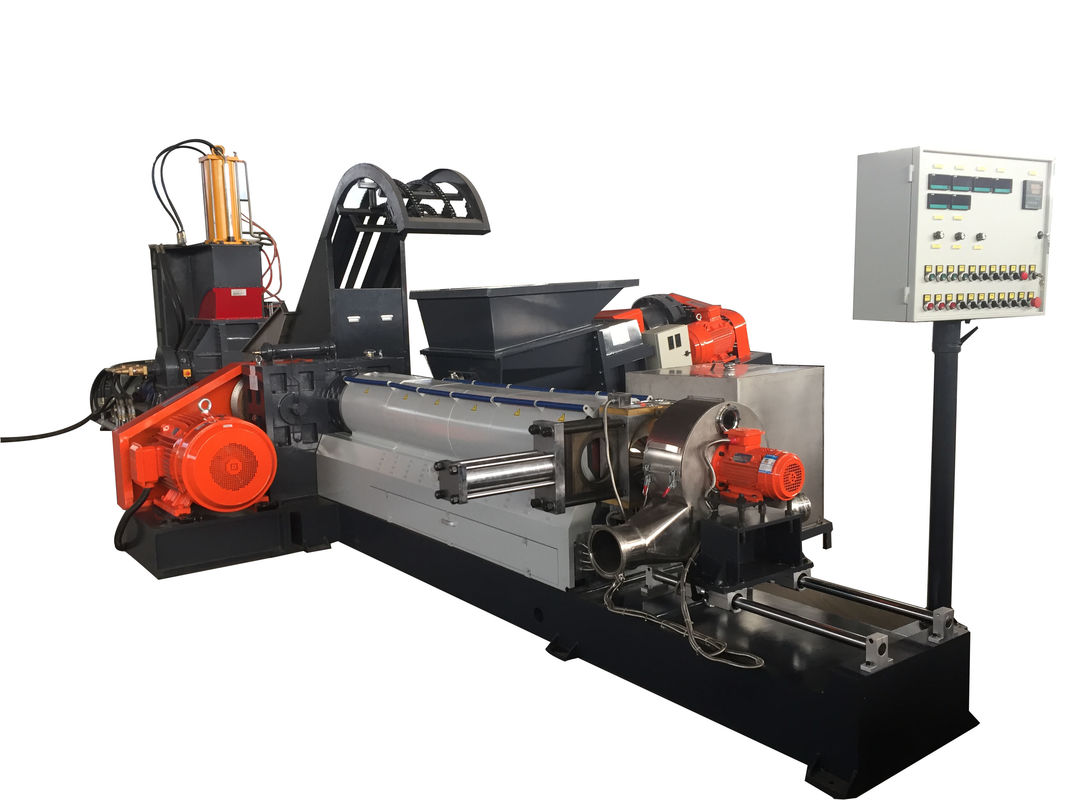

Masterbatch Single Screw Extruder Machine Kneader hot cutting pelleting system
General Introduction
Single screw extruder machine has been widely used. Its mixing performance and plasticizing properties are better than twin screw extruder. If adding with Kneader, the effect will be best. You can choose Kneader + single screw if you want to produce filler material such as PP, PE + caco3. Our Masterbatch Single Screw Extruder Machine Kneader hot cutting pelleting system will bring you unexpected surprises.
Specification
Model | Kneader | Kneader Motor Power | L/D | Diameter | Motor Power |
GSD-100 | 35L | 55KW | 12-22;1 | 100MM | 37-55KW |
GSD-120 | 55L-75L | 75-110KW | 12-22;1 | 120MM | 55-75KW |
GSD-150 | 110L | 160KW | 12-22;1 | 150MM | 75-110KW |
GSD-180 | 150L | 220KW | 12-22;1 | 180MM | 90-132KW |
Machine Composition
Machine | Set |
Kneader | 1 Set |
Conveyor | 1 Set |
Twin screw force feeder | 1 Set |
Single screw extruder | 1 Set |
Electrical control system | 1 Set |
Die face hot cutting pelleting system | 1 Set |
