Heating Cooling Mixers Mixer Extruder Machine Parts For Plastic Industry

Heating Cooling Mixers Mixer Extruder Machine Parts For Plastic Industry

Heating Cooling Mixers Mixer Extruder Machine Parts For Plastic Industry

Product Details:

Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE ISO9001
Model Number: 500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Cases
Delivery Time: 30 days
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Type: Vertical Type Process Materical: Plastic Material
Warranty: 1 Year Diameter: 4580*2240*2470
Rotation Speed: 475/950/130 Effective Capacity: 225/270
Control: Inverter Control

High speed Mixer Extruder Machine Parts with 500L of 400~500kg/h

High Speed Mixer Information:

It is widely applied to mixing, stirring, drying and coloring of various materials in industries of plastic,  rubber, pharmacy, fuel, food, daily chemicals, etc. GS series mixers adopt advanced design, so it convenient and safe for operation. It offers small size, light weight, high efficiency, low energy consumption, and low noise.

Heating Cooling Mixers are highly acclaimed in the plastic industry.The mixer are used in the processing of dry blend in area of rigid and plasticized pvc ,thermoplastics abs pe pp for drying blend and wet coating ,dyes and colors and other allied industrial .It is a combination of high speed mixer and cooling mixer.the material in high speed mixer during mixing operation gets heated by utilization of frictional heat and then transferred to the cooling mixer in order to keep in free flowing conditions.



Specification For Heating Cooling Mixer
Mixer model
Output(kg/h)
Total power(kw)
GS-Z 100/200
175
14/22/7.5
GS-Z 200/500
350
30/42/11
GS-Z 300/600
500
40/55/11
GS-Z 500/1250
850
55/75/15



Main specifications:



Type Total Volume(L) Effetive Volume(L)

Power of electrical

Machinery and heating(KW)

Principal axis rotary speed Figure dimension(MM) Heating mode Discharge mode
GS-5A 5 3 1.1 1400 620×300×730 Self friction Hand work
GS-10A 10 7 3 2000 1200×300×830
GS-25A 25 20 5.5 1440 1200×350×850
GS-50A 50 35 7/11/3 750/1500 2100×700×1100

Electric

steam

Pneumatic
GS-100A 100 75 14/22/6 650/1300 2100×800×1510
GS-200A 200 150 30/42/9 475/950 2400×850×1580
GS-300A 300 225 40/67/12 475/950 2800×1080×1680
GS-500A 500 375 47/67/12 430/860 3060×1150×1880
GS-800A 800 600 83/110/15 370/740 3385×1380×2750
GS-1000A 1000 750 110/160/28 325/650 3460×1140×2900 Self friction Pneumatic
GS-200C 200 150 30/42 650/1300 2545×900×1700
GS-300C 300 225 47/67 475/950 2800×1080×1680
GS-500C 500 575 83/110 500/1000 3060×1150×1880

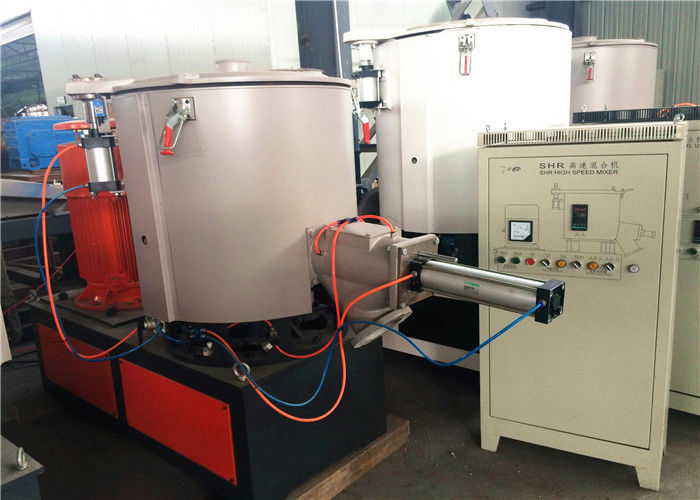

Machine Picture:



Heating Cooling Mixers Mixer Extruder Machine Parts For Plastic Industry
