EVA TPE Shoe Sole Material Rubber Kneader Machine With Underwater Cutting System

EVA TPE Shoe Sole Material Rubber Kneader Machine With Underwater Cutting System

EVA TPE Shoe Sole Material Rubber Kneader Machine With Underwater Cutting System

Product Details:

Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: SGS CE
Model Number: 75+120 single screw extruder

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden cases and pallets
Delivery Time: 30 days
Supply Ability: 1
Contact Now
Detailed Product Description
Process Material: EVA TPE Shoe Sole Material Cutting System: Under Water Cutting
Voltage: 220V/380V/440V/ Type: 75+120 Single Screw Extruder
Weight: 13T Application: Granules

EVA TPE shoe sole material Rubber kneader Machine with underwater cutting system



Machine Introduction:

EVA/TPU/TPE/TPR/PSU plastic under-water cutting extruder pelletizing line is a perfect way to make EVA granuales. As we all know EVA is too sticky and too hard to cut, but in this pelletizing line, everything is no problem. With this line, the EVA/TPU/TPE/TPR/PSU granules are more beatiful and expensive than them made in other ways.

In most cases,parallei co-rotating twin screw extruders are used as mixing equipments.In processing high molecular materials,the modification process and master batch preparation of polyolefin materials and engineering plastics require sufficient and intensive mixng,which differs depending on material systems.



Underwater cutting system Specification:

1) Extrusion die plates

Diverter valve guides the melt stream either through the screen pack or via a bypass system around the screen pack to a strand die.The value avoids freeze-off of the die plate holes Hydraulic station offer the pressure Imported die plates from USA

2) Under water pelletizer

-move able support cart

-pelletizer motor

-hydraulic unit

-cutter shaft

-cutter hubs

-heating bar 8 x 0.6 KW

-special heat isolation

- quick change of the die plate insert within 8 minutes Pelletizer motor is A.C. motor , 4KW, Max speed 3,000 rpm. The shaft is from NSK Japan The horizontal feed of cutter shaft and the cutter hub to the die plate is controlled by hand wheel accurately

The tolerances between cutter hub and die plate are compensated automatically

3) Tempered water system

- stainless steel water tank, 0.8 m3

- heating system, 11 KW, 20-80 ℃

- water pump, 4KW

- heat exchanger, size up to 2 m2

4) By-pass pipes

-pipes is made of stainless steel

-pneumatic diverter value is from Pneumatics U.S.A

-value of bypass and PLC program the time when the cooling water entry into the cutting chamber.

-Sight glass for checking

5) Centrifugal dryer

-Motor power:4kw

-304 stainless steel made

6) Shifter

-Capacity:200-300kg/hr

-Discharging Gap: 3, qualified pellets, huge pellets, small pellets

-Made of stainless steel

7) Air blower and silo

-Conveying part:

-Motor power for fan: 4kw

-Pipe material: stainless steel

-Conveying capacity: more than 800kg/hr

-Silo part:

-Silo volume:1000L

-Material: stainless steel

-Disassembly supporter.

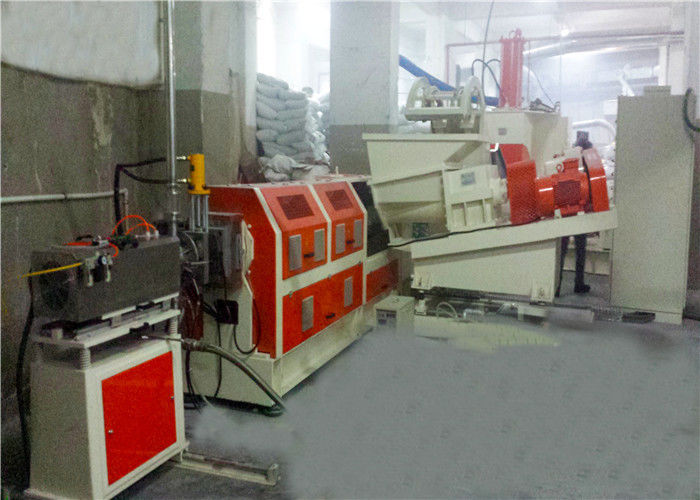

Complete Machine Picture:



EVA TPE Shoe Sole Material Rubber Kneader Machine With Underwater Cutting System
