PLC Control 3D Plastic Filament Extruder Machine , Screw Extruder 3d Printer

Name: PLC Control 3D Plastic Filament Extruder Machine , Screw Extruder 3d Printer
Brand: Nanjing GS-mach Extrusion Equipment Co.,Ltd
SKU: GS45
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GS-mach

Certification: CE ISO9001

Model Number: GS45

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Wooden cases and pallet

Delivery Time: 30~45 days

Payment Terms: L/C, T/T, D/A, D/P

Supply Ability: 100 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                plastic filament extruder machine, 3d filament extruder machine


Process Material:	+/-0.02mm Tolerance Filament	Process Diameter:	1.75mm,2.85mm,3.0mm
Capacity:	15~30kg/h	Tolerance:	+/-0.03mm,
Control System:	PLC Control System	Type:	New Design

Process Material:	+/-0.02mm Tolerance Filament
Process Diameter:	1.75mm,2.85mm,3.0mm
Capacity:	15~30kg/h
Tolerance:	+/-0.03mm,
Control System:	PLC Control System
Type:	New Design

Product Description

PLC control easy operation PLA ABS 3d printer filament making extrusion machine

Information of our PLC control easy operation PLA ABS 3d printer filament making extrusion machine

Application of ABS/PLA Plastic Filament Extruder Machine :
3D abs,pla filament & typing Strips mainly used for 3D Printer.
The main products of the ABS,PLA Filament Extruder: 1.75mm ABS/ PLA 3D Filament & Typing Strips.

Work Flow of the ABS/PLA Plastic Filament Extruder Machine :
25KG Hopper dryer→ 35 Single Screw Extruder → Die →Stainless Steel Warm Water Tank→Stainless Steel Water Cooling tank →Laser guage→Haul-off Machine→Horizontal Storage rack→Double Station Winder

PLC control easy operation PLA ABS 3d printer filament making extrusion machine is mainly used to produce high quality ABS/PLA for all brands of 3D printers. This 3D Printer Filament Extruder/ Extruding Machine has high output and and performance. It can produce ABS/PLA filament with diameter of 1.75 and 3mm. We use laser gauge in the 3D Printer Plastic Filament extruding line to measure the diameter and control the tolerance within 0.03mm.

Main Technical Standards of PLC control easy operation PLA ABS 3d printer filament making extrusion machine:

Model No. GS35
Screw Diameter	35 mm
Ratio of L/D	25:1
Screw Material	38CrMoAlA
Hardness of Screw	HV900-1000
Depth of Nitrogen Treatment	0.4-0.7 mm
Screw Straightness	<0.015 mm
Main Motor Power	5.5 KW
Heating Method	Casting Aluminum Heater
Heating Zones	4 Periods
Heating Power:	2KW*4=8KW
Cooling Method:	Forced Air Cooling
Fan Motor Power	60W*4=0.24KW
Gear Box Reducer	Hard tooth face gear box reducer Model: No.100
Maximum Capacity	8-15Kg/h
Length	1800mm
Width	950mm
Height	1350mm
2,Main Parts:
Name:	Manufacturer:
Main Motor	Siemens AC Motor( 460V 60HZ)

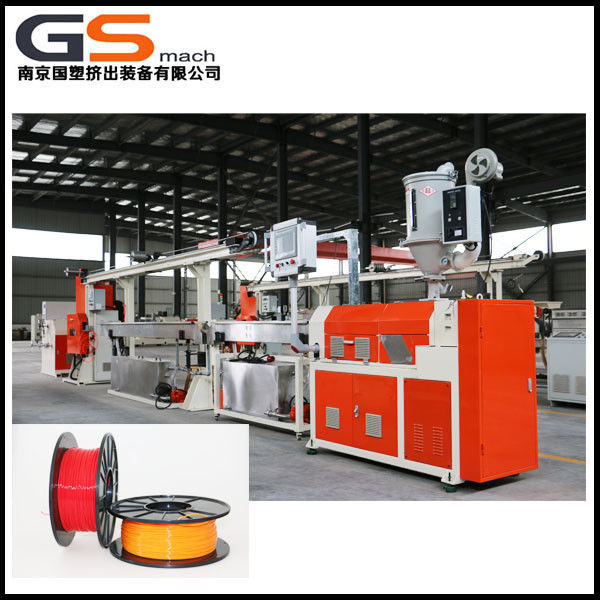

The picture of PLC control easy operation PLA ABS 3d printer filament making extrusion machine:
